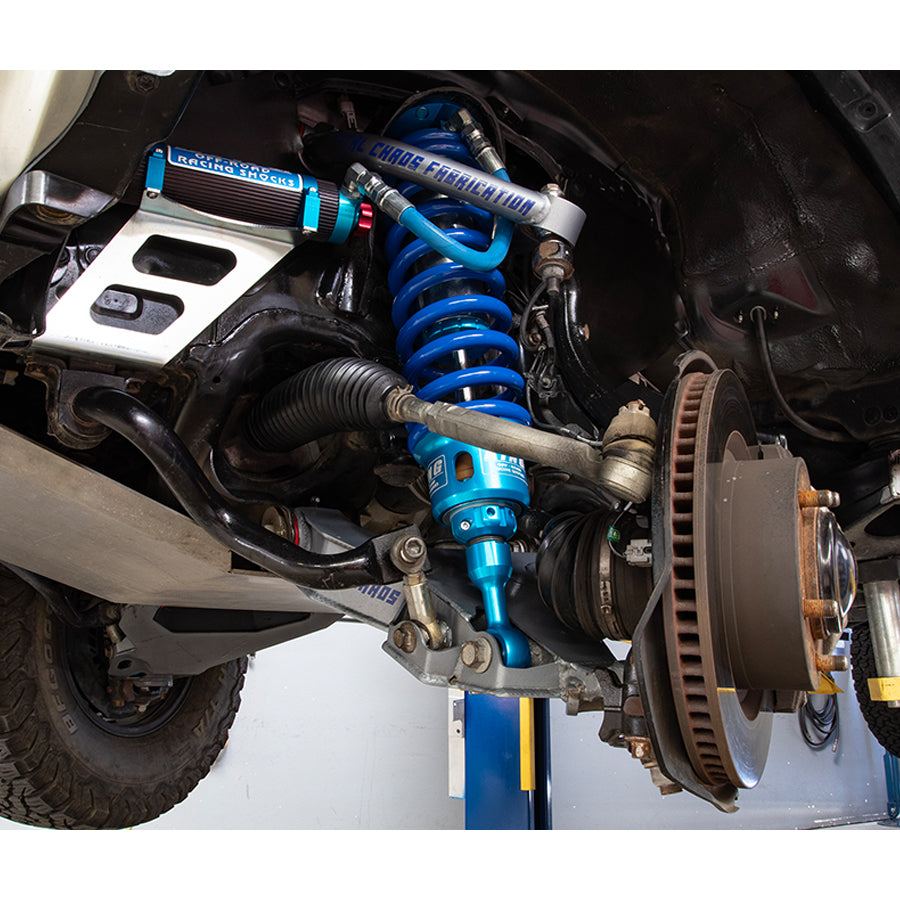

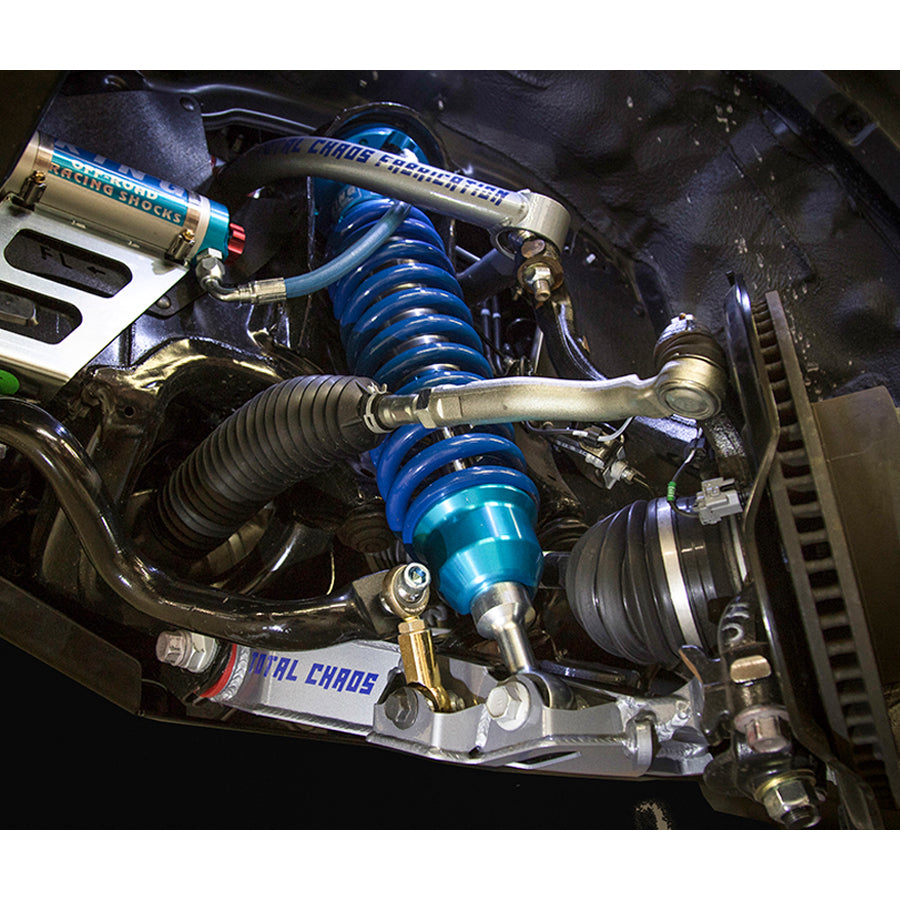

Expedition Series Lower Control Arm Kit

Stock ball joints and rubber bushings eventually wear out and must be replaced. Sloppy steering and uneven tire wear are common when these parts become worn out or damaged. You cannot individually order bushings or ball joints from Toyota for the Factory Series lower control arms.

LCA's are 100% bolt-on and upgrade ball joints to a 1" stainless steel uniball to maximize strength. Rubber bushings are replaced with urethane bushings to provide better off road trail handling and steering response. Less bushing deflection allows the vehicle steering to be more responsive at higher speed on and off road.

These fully rebuildable lower control arms are hand crafted from 4130 chromoly construction making them much stronger than the stock units. Available with single shock tabs or dual shock capability to maximize vehicle dampening control and performance.

• Light weight. Maximum ground clearance. Fully rebuildable. Bolt on. • Will work with all aftermarket brand shocks. • Only lower control arm on the market that allows a 3.0" diameter coilover shock to be installed with no contact. • Billet CNC machined uniball cup houses a 1" 100% stainless steel uniball that upgrades the Factory Series ball joints for greater articulation and strength. • Integrated steering stop tabs retain Factory Series turning angles. • Urethane pivot bushings reduce deflection compared to a rubber bushing offering a tighter steering feel. Zerk fittings allow for easy maintenance. • 4130 chromoly laser cut plates are fully boxed and include internal gussets. • Three stage powder coat includes a durable clear coat. • Hand crafted in the USA

NOT COMPATIBLE WITH 4"-7" SPINDLE/DROP BRACKET LIFTS.
