Mid Travel Suspension Kit, Stage 5A - Fox
$8,302.84
Regular price
For more details, see the Specifications tab below.
Choose Options Below
If you're not sure, please list additional accessories added to the stock vehicle.
If you're not sure, please list additional accessories added to the stock vehicle.
What tires, axle and wheels are you running?
Description
This complete kit includes everything necessary to lift your Tacoma up to 2.5" and provides the ultimate on-road and off-road ride. Stage 5 includes 2.5 x 12" rear Fox Shocks, Archive Garage Shock Relocation Brackets and Ride Shocks Shackle Hanger kit with 4" Shackles to increase rear travel significantly. Front and rear shocks in this kit will come with DSC adjusters which allow you to adjust high and low speed compression manually.

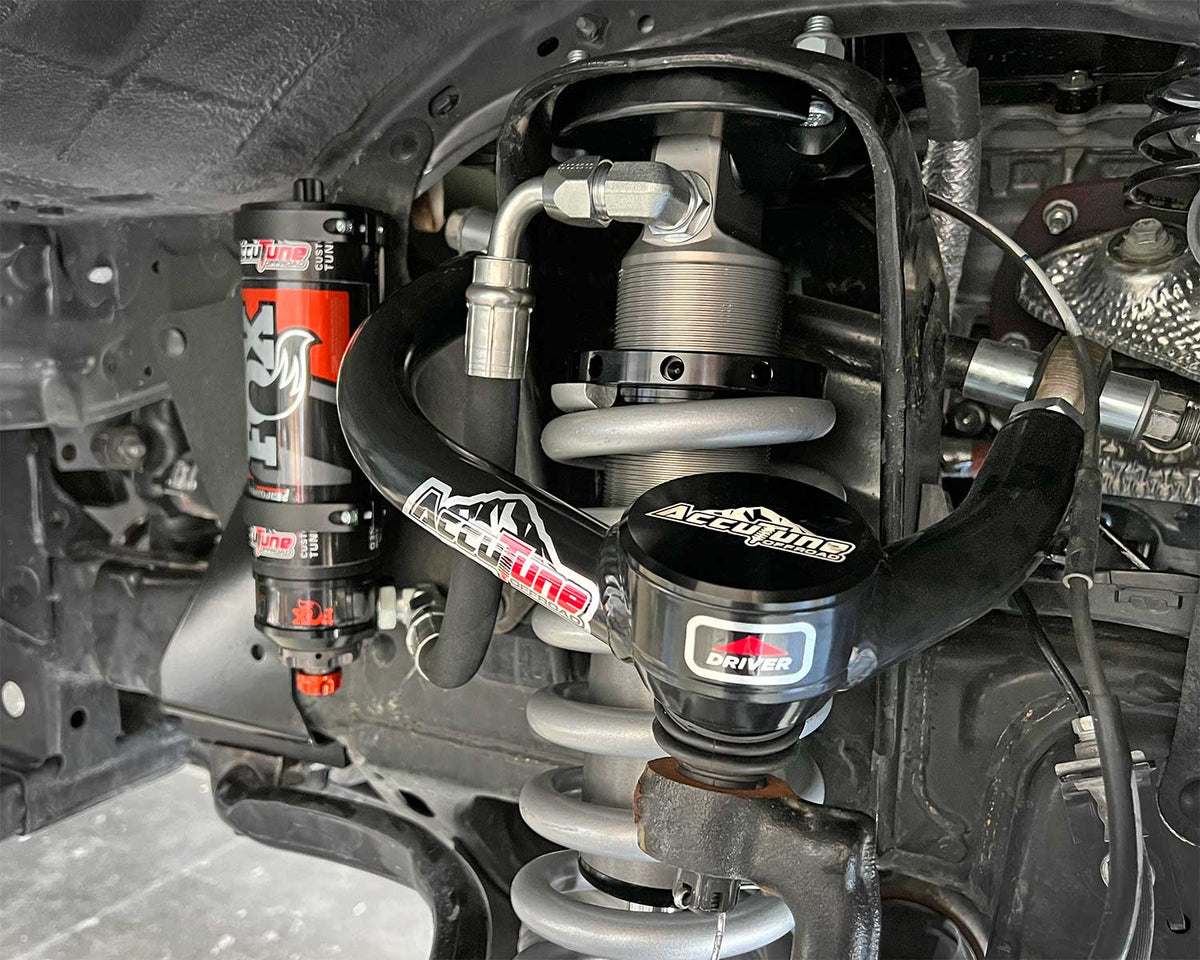

- Front Coilovers: Fox 2.5 Performance Elite Series, DSC

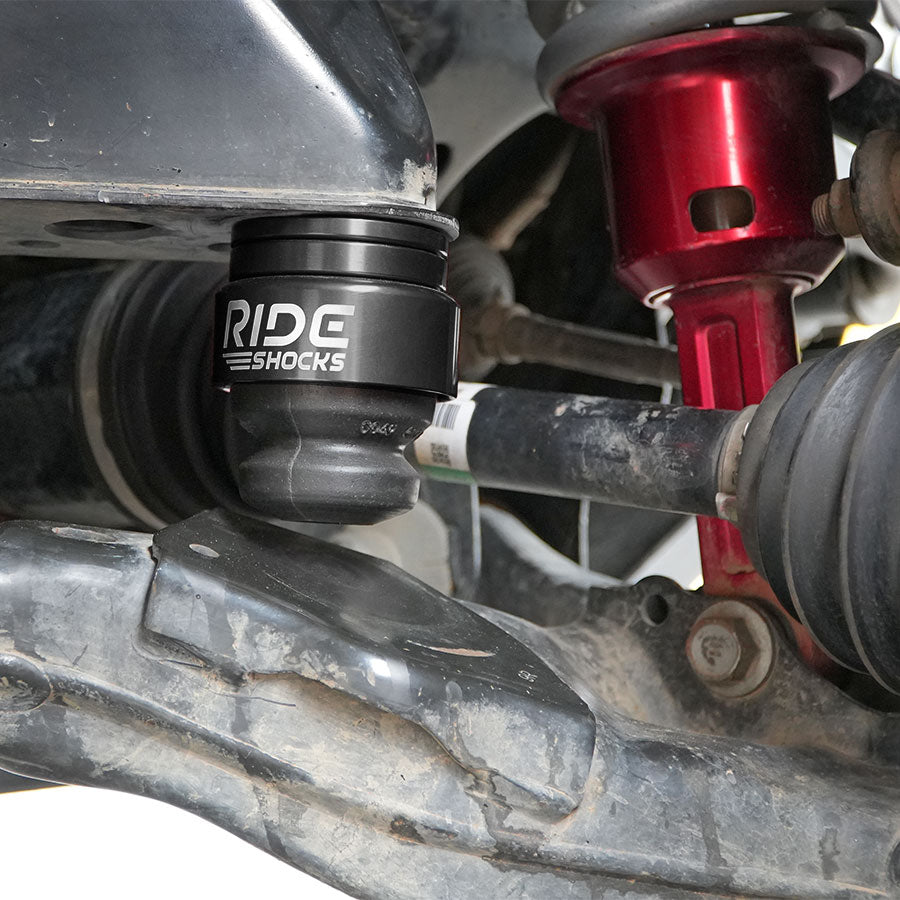

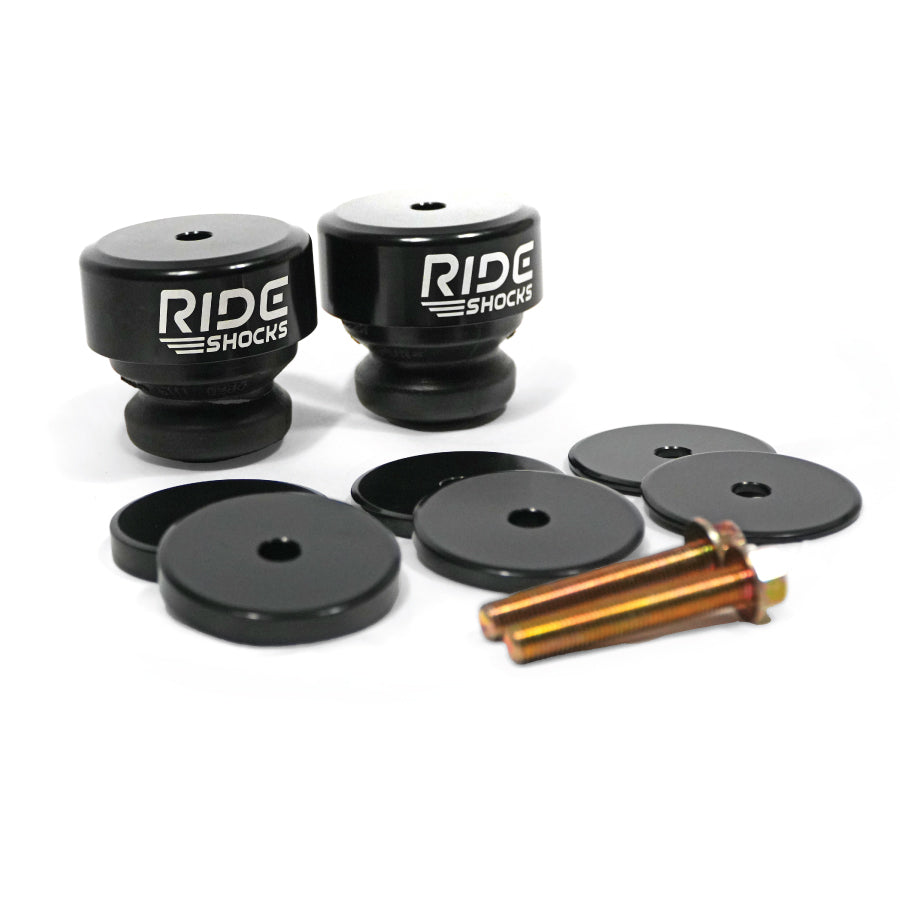

- Ride Shocks Front Bump Stop Kit, Black

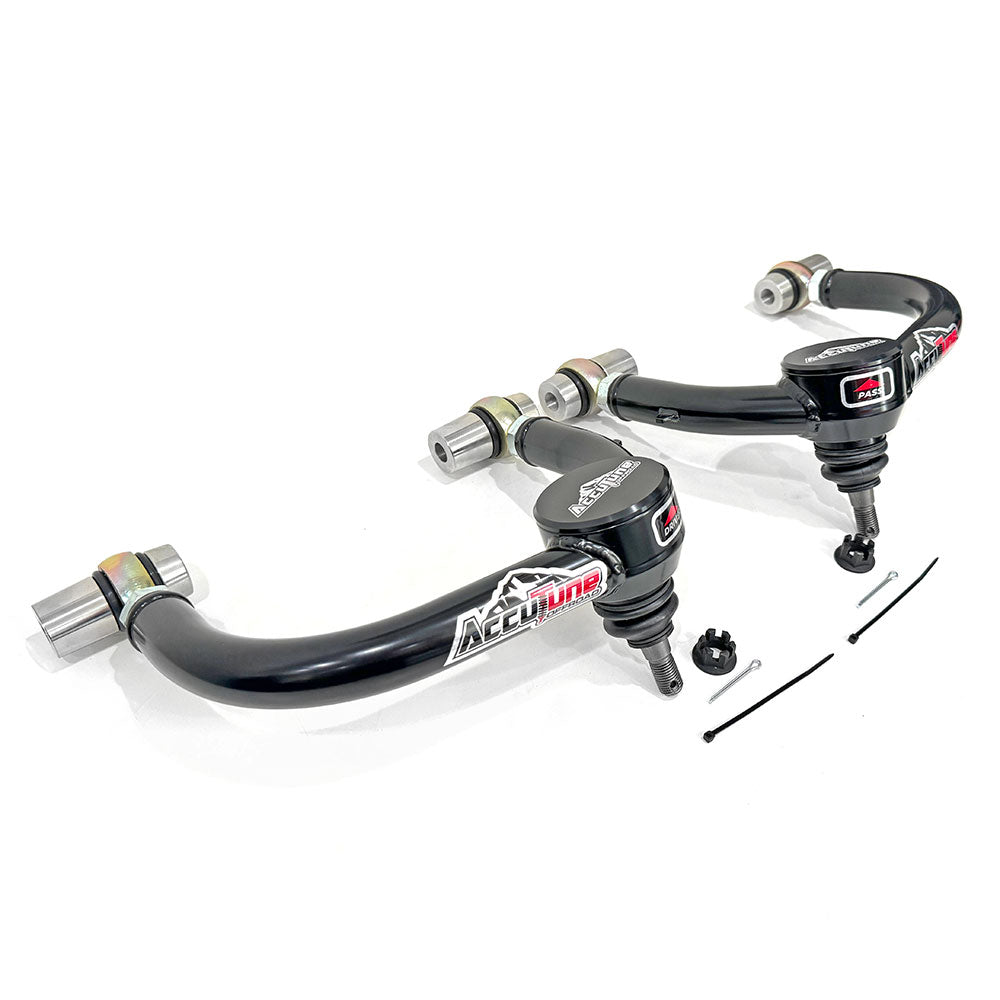

- Front UCA: AccuTune Offroad
- Rear Shocks: Fox Factory Series 2.5 x 12" DSC - Modified
- Rear Springs: Icon RXT Pack

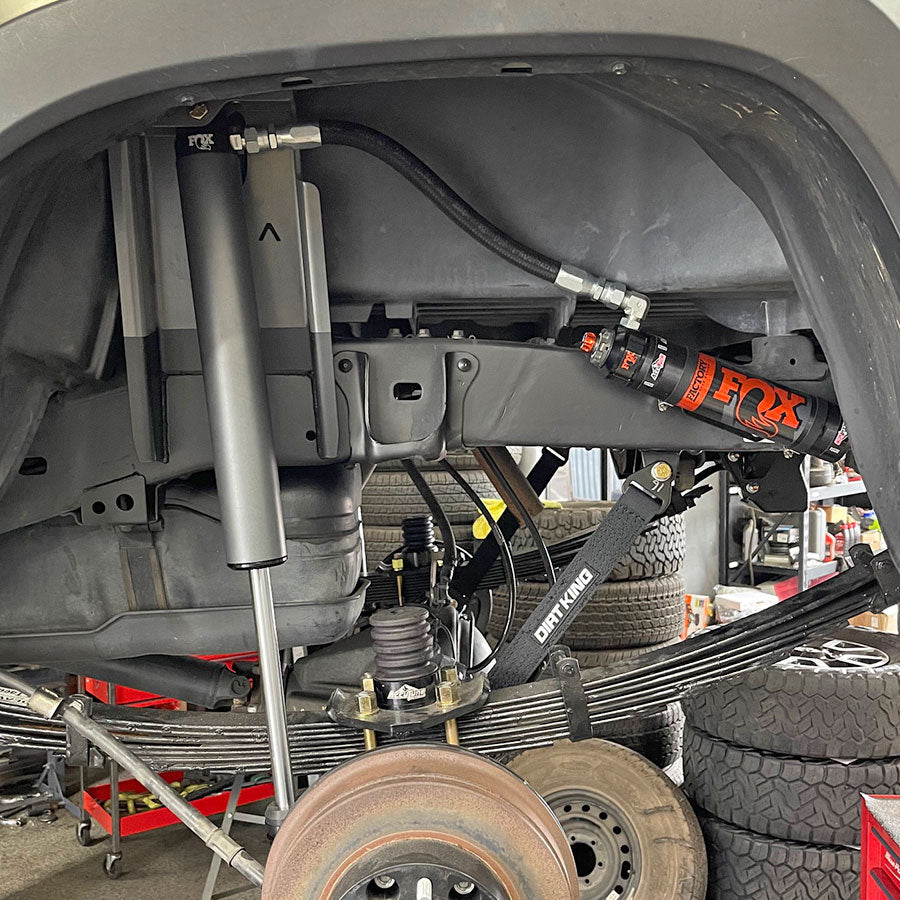

- Archive Garage Rear Shock Relocation Brackets

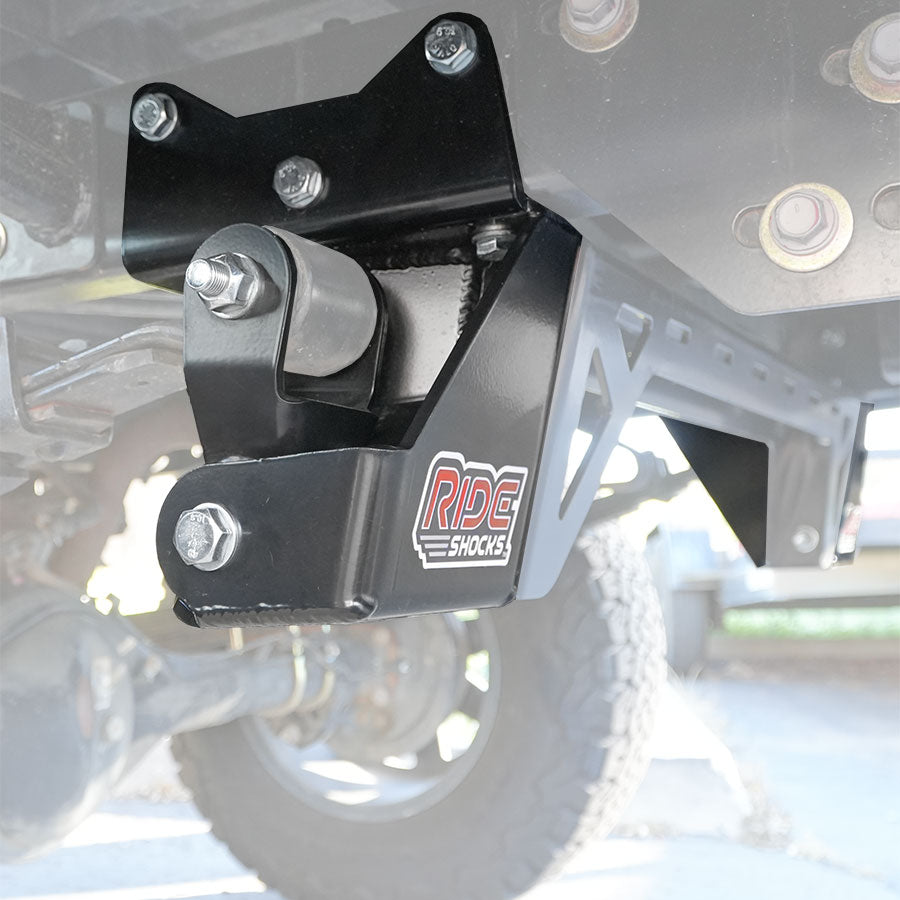

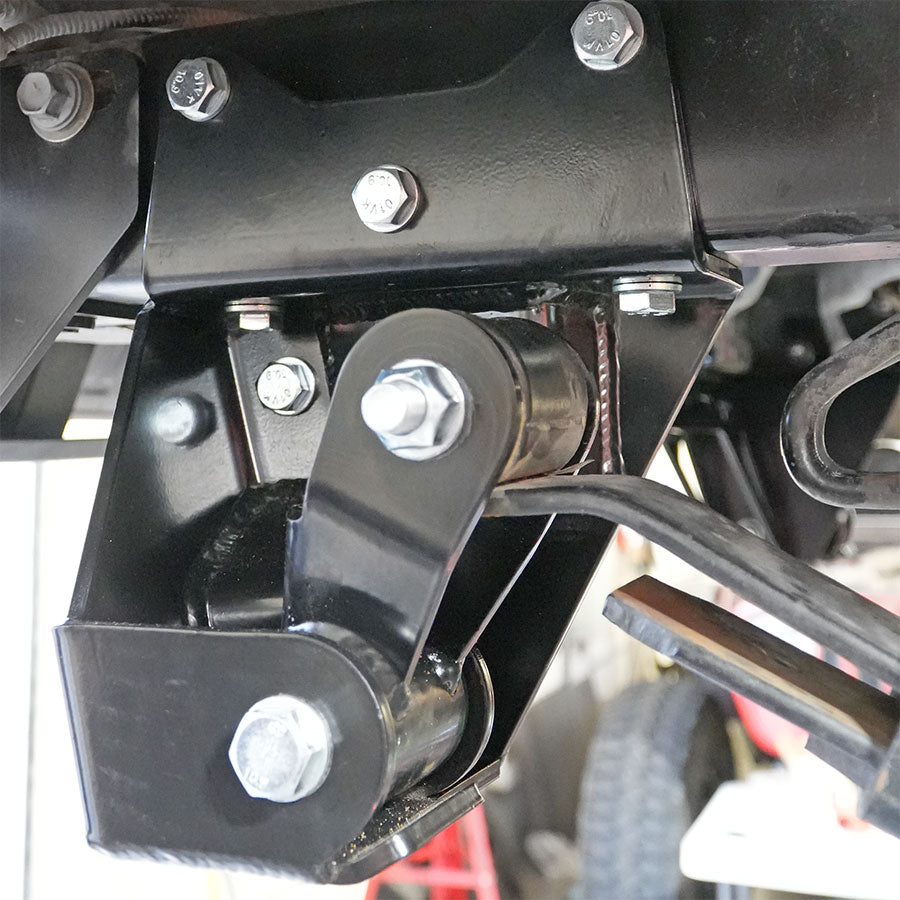

- Ride Shocks Shackle Hanger Kit

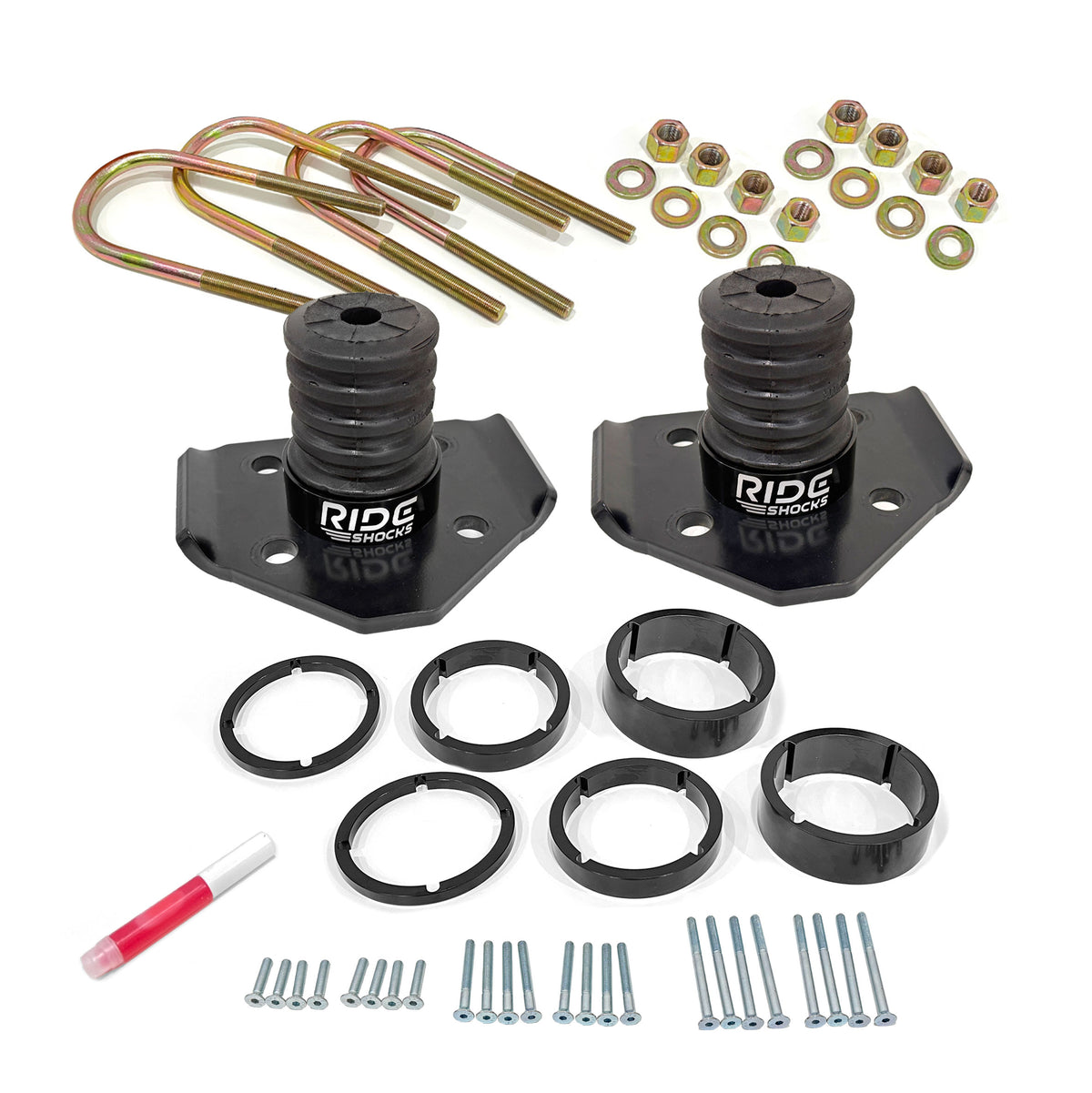

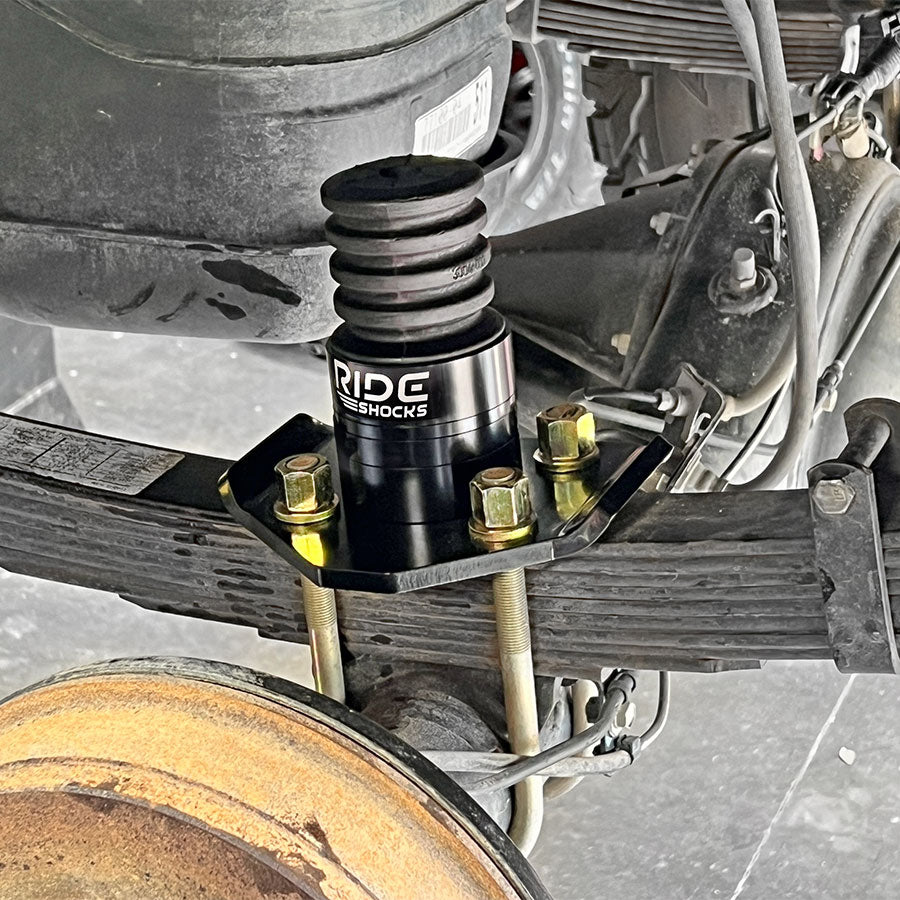

- Ride Shocks Rear U-Bolt Flip Kit W/Bump Stops
- Rear +4" Crown Performance Brake Lines
*Grinding & Welding Required *Requires min 1.50" wheel spacers with 4.75" backspacing for smooth body Front Coilovers:
2016-2023 Tacoma | 0-2” Lift
2005-2015 Tacoma | 0-3” Lift
Specifications
| Specification | Value |
|---|---|
| Brand | Fox |
| Bump Stop Type | 314001521 |
| Control Arm Included | AOR-2000-0025 |
| Front Coilovers Included | FOX-883-06-178 |
| Kit Accessories | Requires grinding & welding |
| Rear Shock Mounts | ARG-SHCKRELO |
| Rear Shocks Included | FOX-981-25-002-3-ARG |
| Rear Spring Hangers | 313002201 |
| Rear Springs | ICON-51101 |
| U-Bolt Flip Kit | 314001401 |
Pre-Tuned For You And Your Ride
