AccuTune Off-Road 2007-2017 Jeep Wrangler JK Rear Coilover Kit

Rear Jeep JK Coilover Kit

Name: Rear Jeep JK Coilover Kit
SKU: 17043
Availability: InStock

SKU: N/A

Free Shipping On Orders Over $150 Free Spring Swapping Free Spring Rate Calculations

Designed for maximum performance, amazing looks, and easy installation the AccuTune Off-Road Rear Coilover Kit can take your Jeep JK to the next level. This JK Coilover kit includes rear coilover brackets with your choice of coilover shocks. Air bumps and mounts can be purchased separately.

For more details, see Specifications Tab below.

Choose Shock Options Below

Brand

Shock Size

Shock Adjusters

Finish

Clear

Jeep Model *
Engine Size *
Front Chassis Weight * *If you're not sure, please list additional accessories added to the stock vehicle.
Rear Chassis Weight * *If you're not sure, please list additional accessories added to the stock vehicle.
Tire & Wheel Size *
Shock Tuning Stage *
Additional Notes
FREE Custom Tuned Shocks ($240 Value) *

California Prop 65 Warning
Visit www.p65warnings.ca.gov for more details

Product Features
Specifications
Reviews

Product Features

Suspension Engineering Experience

The AccuTune Off-Road Jeep JK Coilover Kit was developed using our 15 years of suspension engineering and shock tuning experience to deliver the ultimate performance. The basic fundamentals of suspension setup are Center of Gravity Height, Suspension Geometry, and Shock Setup. Each of these three items multiply by each other, when they're all perfect the performance is unbelievable, but having a problem with any one of them can ruin the whole experience. Our kit was designed to hit all three: 4" lift height keeps the CG low and improves suspension geometry by reducing angles, and our shock setup is excellent with 5" of up travel and optimized mounting angles in the rear. The result is a kit that delivers more comfort, more control (no bucking or bouncing), and greater off-road performance than others.

Low Lift Height

This kit will support lift heights from 2.5" to 6" while retaining 5" of up travel. With some trimming our JK clears huge 40" BFG KR3 Tires while running a 2.75" lift in the rear and 5" of up travel. By keeping the height low we are able to improve the stability and to improve the JK suspension geometry by reducing link angles.

5 inches Up

By giving the JK 5" of up travel there is enough room for the coilovers to work and to provide a comfortable ride while gently absorbing bumps. Through our years of testing and tuning we've found that less up travel is ok for crawling, but significant comfort and control are given up on normal trail riding. Bouncing off the bump stops can cause harshness, loss of momentum, or in extreme situations a loss of control. In order to deliver the off-road performance worthy of the AccuTune name we designed the kit to have 5" of up travel.

Weld On Strength & Easy Install

Coilovers add a lot more force to shock brackets because they now have to support the spring forces and damping forces. The brackets in our JK Coilover Kit are made from 3/16" laser cut and cnc bent steel so they can handle whatever you throw at them. In addition to being extremely strong these brackets are designed for a precise fitment making the install extremely simple.

Optimized Shock Setup

It is important to mount shocks with a consistent motion ratio through out travel. Shocks mounted on extreme angles cause damping forces and spring rates to decrease near bottoming. We've worked extremely hard to design complex sheet metal brackets to keep the shocks as vertical as possible. The rear brackets are so high the upper shock bolt barely slides in, they're so wide they nearly hit the frame on articulation, and they're so far forward they nearly hit aftermarket track bar mounts. This is as good as JK Coilover mounts can get without cutting the tub or sacrificing other critical factors such as ride height and up travel.

Specifications

What’s Included:

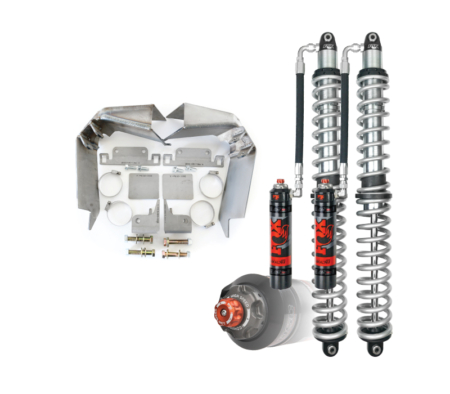

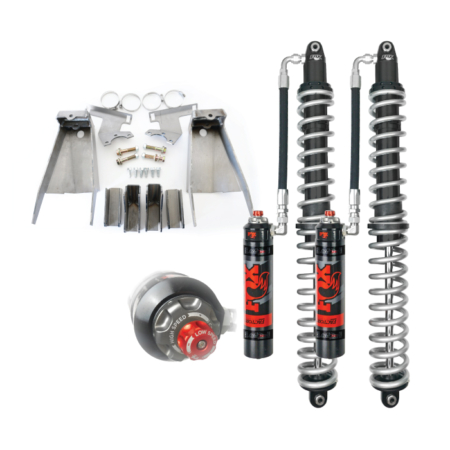

Upper Shock Mounts (Left & Right) Lower Shock Mounts (2 Pieces) Reservoir Mounts (2 Pieces) Reservoir Mounting Hardware (Hose Clamps & Mounting Screws) Shock Mounting Hardware (1/2 x 2.75 Grade 8 Fine Thread Bolts, Nuts & Washers)

Jeep JK Lift Height Recommendations:

4″ front lift with 5″ of up travel is most common
12″ travel coilovers
37″ tires with tube fenders
40″ tires with high clearance plastic fenders
Requires 3″ bump stop spacers in front, rear depends on how much body you want to trim.
Recommend raised track bar and flipped steering

2.5″ front lift with 5″ of up travel is most common
10″ travel coilovers
35″ tires with tube fenders
Stock track bar and steering locations

Jeep JK Rear Coilover Kit Details:

This kit was designed to fit Jeep JK’s running 2.0 x 12″or 2.5 x 12″ travel King or Fox coilovers with 4-5″ of lift while delivering 5″ of up travel. The AccuTune JK runs this kit with Fox 2.5 x 12″ IBP Coilovers, 2.75″ bump stop spacers, and a 2.75″ rear lift height. Jeep JK’s come with a 1.25″ rake (depending on model) so a 2.75″ rear lift sits level with a 4″ front lift. Most lift kit companies are measuring front lift height. 2.0 coilovers are about 1.5″ shorter than 2.5 coilovers and require the lower shock mount to be welded on higher.

Yes, You Can Run 14’s, But It’s Not Easy:

This kit will allow your Jeep JK to run 2.0 x 14″ travel Fox or King coilovers with 5″ of up travel on 3.5″ of rear lift and 3.5″ bump stop spacers. This setup provides substantially more droop than lift kits and bolt on aftermarket parts can support. Recommended only for experts using aftermarket axles and custom suspension geometry. May require exhaust and skid plate modifications.

What’s Required:

Longer brake lines suitable for your lift height & wheel travel. Sway Bar links suitable for your lift height & wheel travel. Wheels with 4″ backspacing minimum. Aftermarket driveshaft. Lift kit components for desired lift height (control arms, steering, etc) Exhaust modifications. Aftermarket rear sway bar, factory rear sway bar will not work.

Installation Notes:

Requires cutting, grinding and welding.

Installation Notes: Cutting, Griding & Welding Required
