05-23 Tacoma Mid Travel Suspension Kit, Stage 5A – Fox
Free Shipping On Orders Over $150This complete kit includes everything necessary to lift your Tacoma up to 2.5″ and provides the ultimate on-road and off-road ride. Stage 5 includes 2.5 x 12″ rear shocks, Archive Garage Shock Relocation Brackets and Hammer Hangers to increase rear travel significantly. Front and rear shocks in this kit will come with DSC adjusters which allow you to adjust high and low speed compression manually.
-Front Coilovers: Fox 2.5 Performance Elite Series, DSC
-Sway bar relocation brackets included with shocks
-Front UCA: AccuTune Offroad
-Rear Shocks: Fox Factory 2.5 x 12″ DSC – Modified
-Rear Archive Garage Shock Relocation Brackets
-Rear Springs: Icon RXT Pack
-Archive Garage Rear Shock Relocation Brackets
-Archive Garage Hammer Hangers
-Revised Rear U-Bolt Flip Kit W/Bump Stops: AccuTune Offroad
-Rear +4″ Crown Performance Brake Lines
*Grinding & Welding Required
*Requires min 1.50″ wheel spacers with 4.75″ backspacing for smooth body
Front Coilovers:
2016-2023 Tacoma | 0-2” Lift
2005-2015 Tacoma | 0-3” Lift
1 in stock
-
- Product Features
- Specifications
Product Features
AccuTune Offroad Advantage
At AccuTune Off-Road we custom tune every shock to fit your Tacoma's modifications, your terrain, and your preferences to give you the best on-road and off-road ride possible. There are three steps which set AccuTune aparts: phone consultation to understand your truck and use, AccuTune Equations using the latest tuning techniques to provide a completely custom shock, and finally in house re-valve to ensure quality and fast delivery. Go with AccuTune and feel the difference.
Cerakote Finish
Factory Race Series shocks come with dual coated steel body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat.
Fox Performance Elite Series Shocks
2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time. External reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
Fox 2.5 DSC Dual Speed Compression Adjuster
Fox's DSC (Dual Speed Compression) adjuster adds external adjustment of low speed and high speed compression so you can tackle a huge variety of terrain in total comfort. Low speed compression adjustment is great for tuning road feel, g-outs and bottoming control. High speed compression adjustment is good for control on big hits and whoops. These are a great add on for anyone wanting the ultimate performance, easy tunability, or significantly changes the weight of their vehicle. Get the most out your Fox 2.5" shocks with a DSC Adjuster.

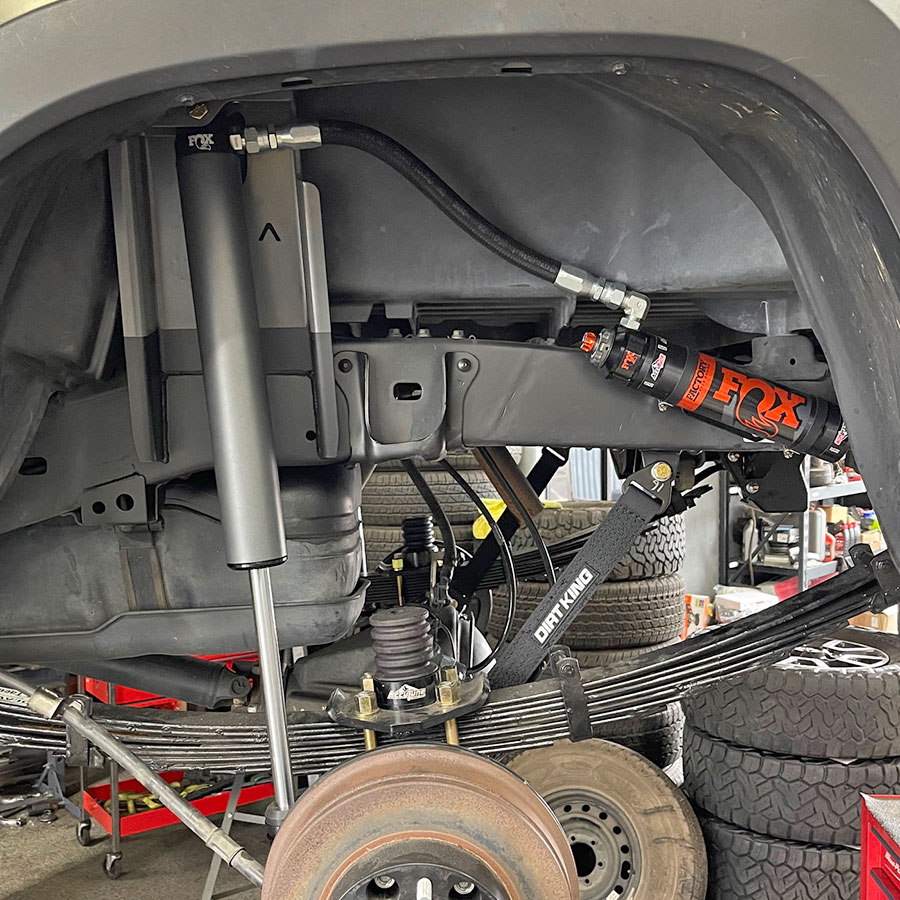

Shock Relocation & Hanger
By upgrading the rear shackle hanger and relocating the rear shock we are able to get 12" of travel out of a spring over Tacoma. The archive garage relocation bracket has more ground clearance and is easier to install than other kits (includes spacers to fit all cab configurations). The archive garage hammer hanger and 4.9" long shackle eliminate bushing bind and allow the springs to achieve their full potential (cross tube not included). If you want the ultimate mid travel setup look no further than this combination.
AccuTune Offroad Upper Control Arms
After market upper control arms are needed when lifting your Tacoma over 2” or when using extended travel coilovers. AccuTune Offroad Upper Control Arm is designed to fit larger tires and longer shocks, while maintaining proper alignment. Tubular steel design looks great with high quality powder coat finish. FK Rod ends are sealed to keep dirt and debris from premature wear and noise. Heim joints come pre-set and ready to install.
Fox 2.5 x 12" Rear Shocks
These shocks will get the most travel possible out of your Tacoma Mid Travel setup. These are full blown racing shocks with huge fittings, bearing eyelets, high flow race piston, and viton seals. If you want the most travel, or plan to push your truck in rough terrain this is the setup for you.
Icon RXT Leaf Pack
The Icon RXT rear leaf pack offers better ride quality, off-road performance, and more travel than the mini-pack. The Icon Tacoma RXT leaf pack is user configurable to three lift heights & spring rates so it can be customized to suite your needs while providing up to 12" of travel.
AccuTune Offroad U-Bolt Flip & Bump Stop Kit
The AccuTune Offroad U-Bolt Flip Kit is designed to allow for maximum suspension travel on the rear of a 2005+ Toyota Tacoma. The u-bolt flip design will provide better ground clearance for off-road use and the specially designed bump stops will improve ride quality.
Specifications

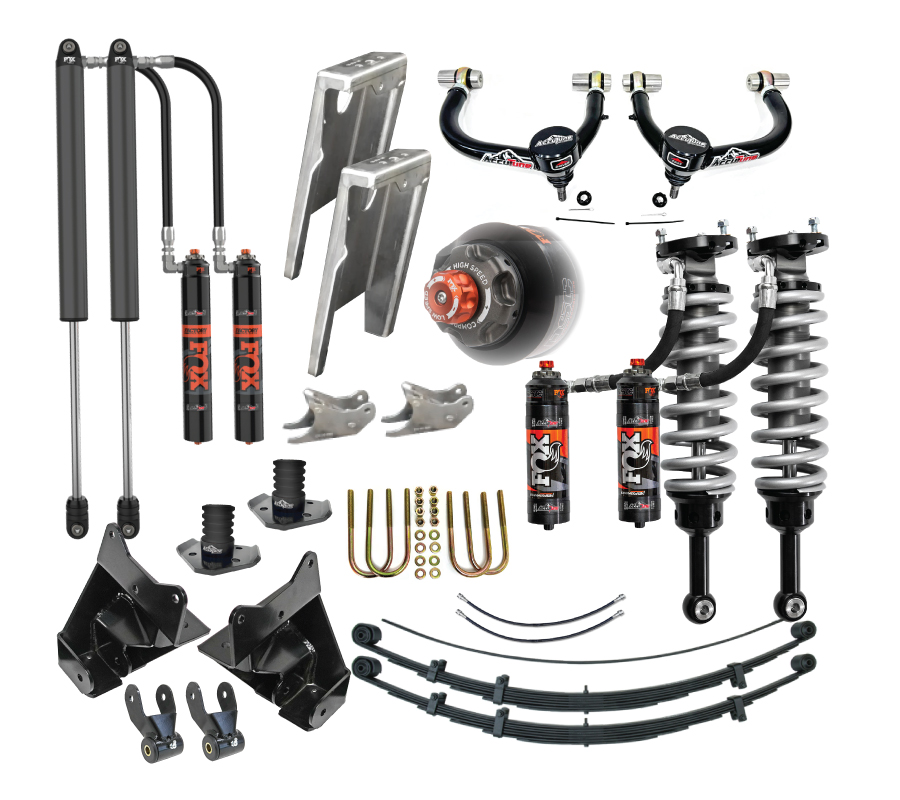

Includes:
- Product Front Coilovers: FOX-883-06-178
- Product Front Upper Control Arms: AOR-2000-0025
- Product Rear Shocks: FOX-981-25-002-3-ARG
- Product Rear Springs: ICON-51101
- Product U-Bolt Flip Kit: Newly Revised U-Bolt Flip Kit (AOR-2000-0024-001)
- Product Rear Shock Mounts: ARG-SHCKRELO
- Product Rear Spring Hangers: ARG-SHCKHAMMER-49
- Product Accessories: Requires grinding & welding
