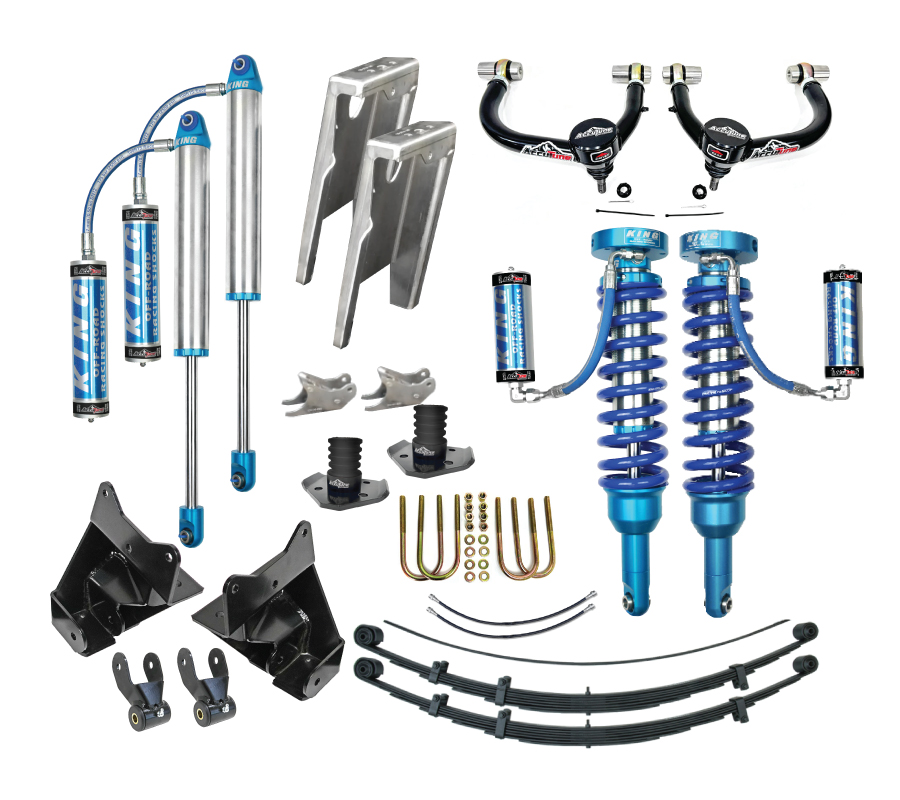

05-23 Tacoma Mid Travel Suspension Kit, Stage 5 – King
Free Shipping On Orders Over $150This complete kit features everything necessary to lift your Tacoma up to 2.5″ and provides the ultimate on-road and off-road ride. Stage 5 includes 2.5×12″ shocks, Archive Garage Shock Relocation Brackets, and Hammer Hangers to increase rear travel 1.5″ over oem fit shocks.
-Front Coilovers: King 2.5 Remote Reservoir
-Sway bar relocation brackets included with shocks
-Front UCA: AccuTune Offroad
-Rear Shocks: King 2.5 x 12″ Remote
-Rear Archive Garage Shock Relocation Brackets
-Rear Springs: Icon RXT Pack
-Revised Rear U-Bolt Flip Kit W/Bump Stops: AccuTune Offroad
-Rear Archive Garage Hammer Hangers
-Rear +4″ Crown Performance Brake Lines
*Grinding & Welding Required
*Requires min 1.50″ wheel spacers with 4.75″ backspacing for smooth body
Front Coilovers:
2016-2021 Tacoma | 0-2” Lift
2005-2015 Tacoma | 0-3” Lift
2 in stock
$6,415.74
-
- Product Features
- Specifications
Product Features
AccuTune Off-Road Advantage
At AccuTune Off-Road we custom tune every shock to fit your Tacoma's modifications, your terrain, and your preferences to give you the best on-road and off-road ride possible. There are three steps which set AccuTune aparts: phone consultation to understand your truck and use, AccuTune Equations using the latest tuning techniques to provide a completely custom shock, and finally in house re-valve to ensure quality and fast delivery. Go with AccuTune and feel the difference.
Shock Relocation & Hanger
By upgrading the rear shackle hanger and relocating the rear shock we are able to get 12" of travel out of a spring over Tacoma. The archive garage relocation bracket has more ground clearance and is easier to install than other kits (includes spacers to fit all cab configurations). The archive garage hammer hanger and 3.6" long shackle eliminate bushing bind and allow the springs to achieve their full potential (cross tube not included). If you want the ultimate mid travel setup look no further than this combination.
King 2.5 Extended Travel Coilovers
The front of Tacoma's use A-Arms with a large motion ratio so large shocks are required provide off-road capability. King 2.5 coilovers provide the diameter necessary to make the damping force required to prevent your Tacoma from being too bouncy. The remote reservoirs decrease the operating pressure for a smoother ride and longer life span. The extended travel allows for lift heights up to 2.5" without the suspension over extending. For real off-road performance look no further than King 2.5 Extended Travel Coilovers for your Tacoma.
AccuTune Offroad Upper Control Arms
After market upper control arms are needed when lifting your Tacoma over 2” or when using extended travel coilovers. AccuTune Offroad Upper Control Arm is designed to fit larger tires and longer shocks, while maintaining proper alignment. Tubular steel design looks great with high quality powder coat finish. FK Rod ends are sealed to keep dirt and debris from premature wear and noise. Heim joints come pre-set and ready to install.
King 2.5 x 12" Rear Shocks
These shocks will get the most travel possible out of your Tacoma Mid Travel setup. These are full blown racing shocks with larger fittings and bearing eyelets. If you want the most travel, or plan to push your truck in rough terrain this is the setup for you.
Icon RXT Leaf Pack
The Icon RXT rear leaf pack offers better ride quality, off-road performance, and more travel than the mini-pack. The Icon Tacoma RXT leaf pack is user configurable to three lift heights & spring rates so it can be customized to suite your needs while providing up to 12" of travel.
AccuTune Offroad U-Bolt Flip & Bump Stop Kit
The AccuTune Offroad U-Bolt Flip Kit is designed to allow for maximum suspension travel on the rear of a 2005+ Toyota Tacoma. The u-bolt flip design will provide better ground clearance for off-road use and the specially designed bump stops will improve ride quality.
Specifications
Includes:
- Product Front Coilovers: KRS-25001-119-EXT
- Product Front Upper Control Arms: AOR-2000-0025
- Product Rear Shocks: KRS-PR2512-SS
- Product Rear Springs: ICON-51101
- Product U-Bolt Flip Kit: Newly Revised U-Bolt Flip Kit (AOR-2000-0024-001)
- Product Rear Shock Mounts: ARG-SHCKRELO
- Product Rear Spring Hangers: ARG-SHCKHAMMER-49
- Product Accessories: Requires grinding & welding
