AccuTune Offroad, 21+ Bronco, Rear Spring Kit, King 0-400 LB, Ride 0-300 LB

AccuTune Offroad, 21+ Bronco, Rear Spring Kit, King 0-400 LB, Ride 0-300 LB

SKU: AOR-2000-0047
Free Shipping On Orders Over $150 Free Spring Rate Calculations

AccuTune Offroad multi-rate spring for the rear of a Ford Bronco with King Coilovers AND Ride Shocks. These springs are designed to support 0-400 LBS of added weight over stock using King Shocks and 0-300 LBS of added weight over stock using Ride Shocks. Make your coilovers come alive with proper spring rate and valving from AccuTune Offroad.

Intended for rear King Coilovers :
KRS-25001-393A & KRS-25001-393
OR
Comes Standard on Ride Shocks Coilovers: 525414589

SOLD IN PAIRS

6 in stock

$439.95

-

California Prop 65 Warning
Visit www.p65warnings.ca.gov for more details
  • Features
  • Specifications

Features

AccuTune Spring Rate Calculations & After Sale Support

Get the best performance and value from AccuTune Off-Road. Our coilover spring rate calculators will help you select the correct springs whether this is your first set or you’re replacing an existing set. AccuTune Off-Road has the knowledge and service to make your suspension perform at its best.

Premium Manufacturing Techniques Prevent Bowing

Eibach uses premium manufacturing techniques to ensure their coilover springs are the straightest and squarest in the industry. By preventing bowing your springs will last longer and your vehicle will ride better due to reduced contact with the shock body.

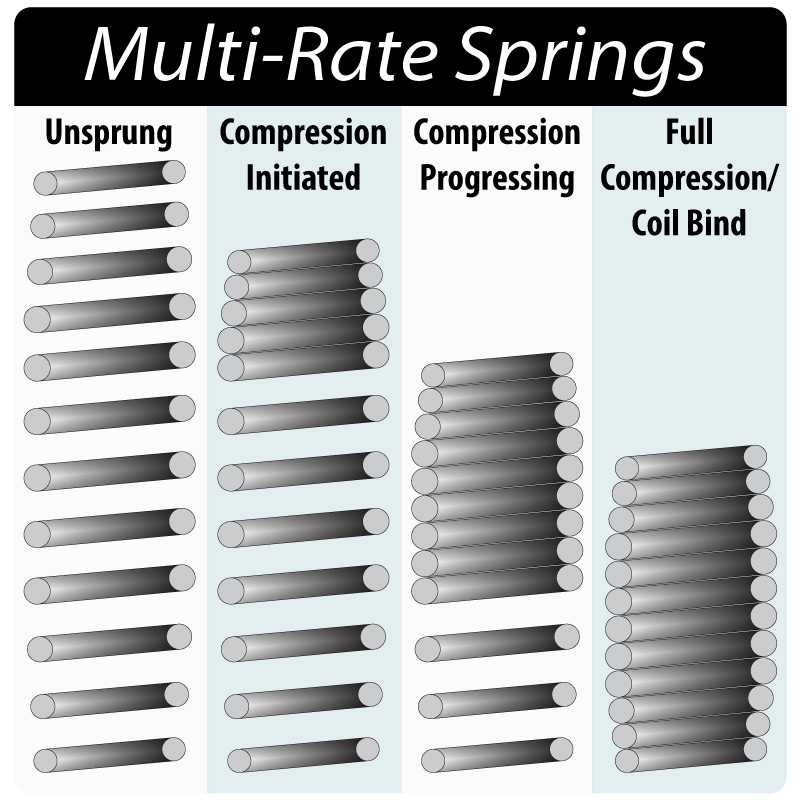

Multi-Rate Spring Tech

AccuTune multi-rate springs have various stages of spring rate built into one. As the spring compresses, the lower spring rate coils contact each other, allowing for the next stage to take over. Once that section of coils contacts each other, the last section of coils are now at work. This allows for a more progressive feel when vehicle weights are higher due to added accessories. Soft in the smaller bumps, but still stiff enough to soak up a pot hole without bottoming out.

Specifications

Specifications

  • Minimum Preload: 0.00"
  • Target Threads Showing Above Preload Nut: Stock Bronco with Ride Shocks: 0.63" Stock Bronco with King Shocks: 0.13"
  • Max Threads Showing Above Preload Nut: Stock Bronco with Ride Shocks: 1.56" Stock Bronco with King Shocks: 1.38"
