Rear Long Travel Kit, 05-23 Tacoma, Stage 3 – Fox 3.0 x 14 Bypass
Free Shipping On Orders Over $150Rear Long Travel Kit for a 2005-2023 Toyota Tacoma with tuned Fox 3.0 Bypass Shocks. Combined with a front Long Travel Kit, this will provide a complete long travel suspension system for your Tacoma. This kit comes with 14″ travel Fox 3-tube Bypass Shocks and Deaver U644/U645 leaf pack as a spring under axle setup. 3.0 Bypass Shocks have been upgraded with 1″ Bypass Tubes for superior performance.
*Grinding and welding required. Fiberglass fenders required.
*Limit straps are recommended, but not included.
*Bypass Shocks are designed to have 7″ of shaft showing.
*Bump stop spacing may require customization.
$8,647.34
-
- Product Features
- Specifications
Product Features
AccuTune Off-Road Advantage
When purchasing from AccuTune Offroad, you can expect to get the highest quality parts on the market. Each kit includes high quality shocks, custom tuned shocks for your specific vehicle. AccuTune custom valves these shocks based on your vehicles weight, suspension setup and preferred terrain. Years of experience and formulas have been developed to provide you with the ultimate performance you deserve.
Fox 3.0 Bypass Shocks with 14" Travel
For a rear long travel suspension, a 3.0 diameter bypass shock is a great option. The 3-tube bypass shock with upgraded 1" Bypass Tubes will offer great adjustability with compression and rebound. 14 inches of travel provides plenty of travel for high speed desert driving and. Combine AccuTune custom valving and a quality shock like Fox, you have a perfect match for the ultimate performance.
Spring Under Axle with Deaver U644/U645 Springs
Spring under axle provides a great solution for a rear long travel kit on a Toyota Tacoma. The Deaver U644/U645 springs paired with custom tuned shocks will provide great handling both on and offroad.
Camburg Bolt In Bed Cage
The Camburg bolt-on bedcage for the 2005+ Tacoma is an easy way to install bypass shocks on a long-travel leaf spring setup for maximum wheel travel. Bolt in design makes it easy to ship, and easy to install.
Specifications

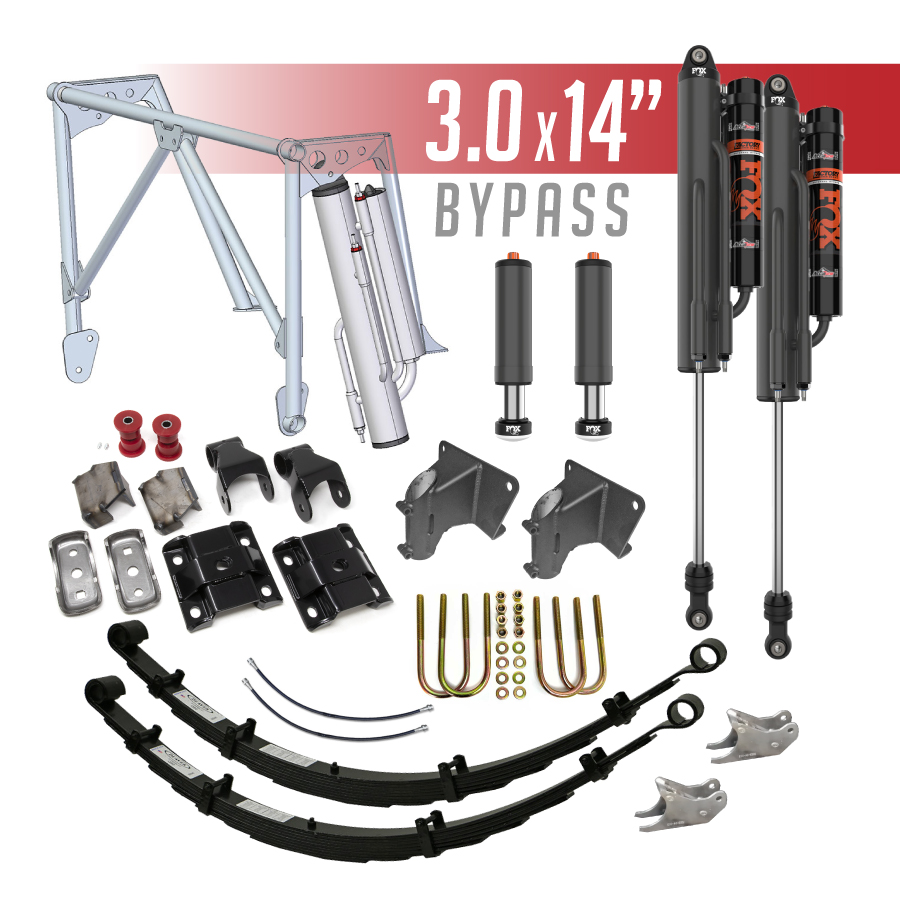

Kit Includes:
(2) Fox 3.0 x 14″ (3 Tube) Bypass Shocks w/Upgraded 1″ Tubes FOX-981-30-403-C
(2) Fox 2.0 x 2.0 Air Bump Stop FOX-981-20-040
(1) Camburg Rear Bolt On Bump Stop Mount Kit CAM-320007
(2) Lower Shock Mounts AOR-2000-005
(1) Camburg Long Travel Bolt On Bed Cage CAM-320021
(1) Archive Garage Spring Under Axle Kit ARG-SUA-5
(1) Archive Garage Hammer Hangers, with 4″ Shackles ARG-HH-020V3-3
(1) Archive Garage High Clearance Cross Tube for Hammer Hangers ARG-HH-CT
(1) Deaver U644/U645 Leaf Pack Kit with Bushings DEV-U644/U645 & DEV-BKIT-U644
(1) Crown Performance +4″ Brake Line Kit CPP-TOYO33R04-BLK
