21+ Ford Bronco, 2.5 Coilover Mid Travel Suspension Kit, Stage 3A – Ride Shocks
Free Shipping On Orders Over $150The front & rear coilovers in this kit are ideal for a 2021+ Ford Bronco that has little to no added weight from accessories. This complete suspension kit featuring the new Ride Shocks coilovers, delivers everything necessary to lift your Bronco front 2-4.0″ and provides the ultimate ride quality for on-road and off-road driving. 2.5 Ride Shocks with compression adjusters will be custom tuned to fit your vehicles weight and intended use.
This Kit contains the AccuTune Offroad upper control arms, which are built tough and allow for the use of maximum travel shocks. They feature additional caster built in to correct geometry and allow for better front-end alignment. These upper control arms will help with fitting up to 37″ tires on your Bronco.

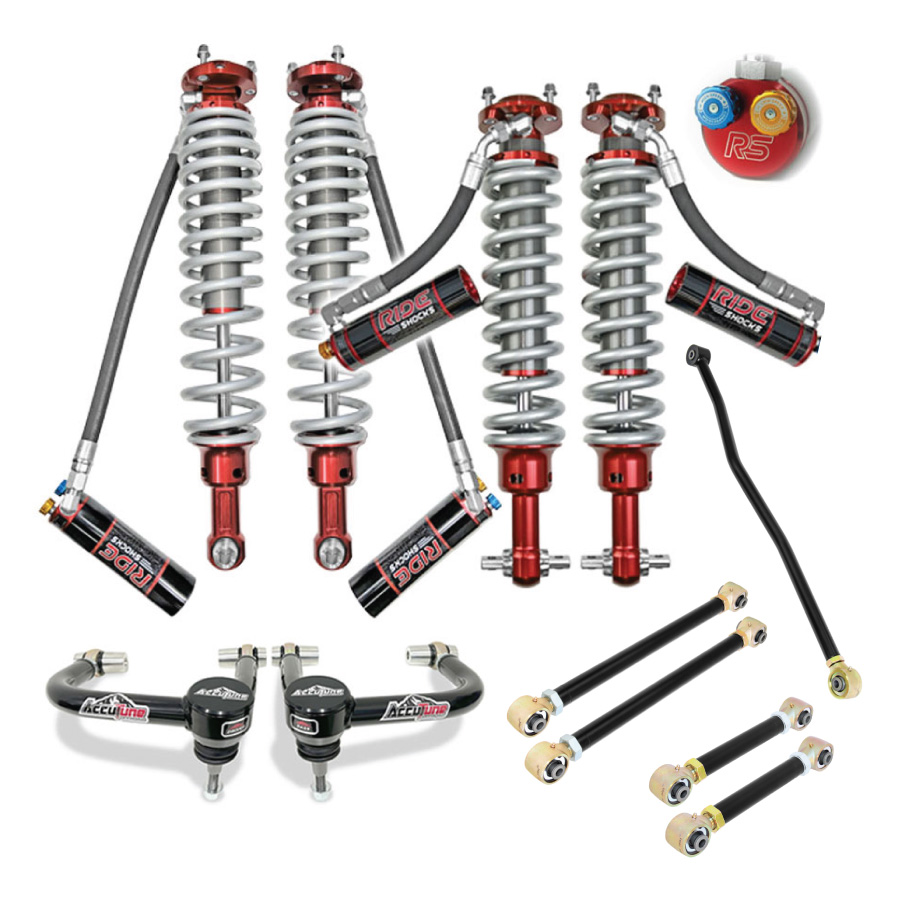

Includes:
-Ride, 2021+ Ford Bronco 2.5″ Front Coilovers
-Ride, 2021+ Ford Bronco 2.5″ Rear Coilovers
-AccuTune Offroad Upper Control Arms
-ICON Tubular Rear Upper Links
-ICON Tubular Rear Lower Links
-ICON Rear Adjustable Track Bar
This package helps free up rear axle movement and allow for increased suspension travel and articulation. It is adjustable for various lift heights & driveline angles. Helps improve link angles to free up rear suspension bind. Added rear track bar helps maintain a centered rear axle throughout the travel. CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish. No grease required for life of link bushings.
-
- Features
- Specifications
Features
AccuTune Offroad Premium Support
At AccuTune Offroad we are shock specialists with real world experience to help you select the right shocks for your ride. After the sale we offer tuning support and one free re-valve so you can get the most out of your shocks. Take your ride to the next level with Ride Shocks shocks from AccuTune Offroad.
Ride Quality
Drawing on more than 15 years of experience fine-tuning top name-brand shocks, Ride Shocks’ team of engineers set out to create the market’s premier OEM fit shock at a cost that competes with our rivals. What distinguishes Ride Shocks is our unwavering commitment to providing exceptional performance without compromising affordability.
Our engineers have seamlessly integrated their extensive knowledge and background into every aspect of our shocks, ensuring that you not only get a superior riding experience but also an OEM fit that surpasses industry standards. Choose Ride Shocks for precision, reliability, and a smoother ride that complements the specific characteristics of your vehicle.
AccuTune Offroad Upper Control Arm (UCA)
AccuTune Offroad Upper Control arms for 2021+ Ford Bronco are designed to fit larger tires and longer shocks, while maintaining proper alignment. Tubular steel design looks great with high quality powder coat finish. FK Rod ends are sealed to keep dirt and debris from premature wear and noise. Heim joints come pre-set and ready to install. AccuTune Offroad upper control arm, made in the USA.
ICON Rear Upper & Lower Control Arms + Track Bar
The ICON Tubular Rear Upper & Lower Link System helps free up rear axle movement to allow for increased suspension travel and articulation. Adjustable for various lift heights & driveline angles. Improves link angles to help free rear suspension bind, and has high clearance link design for reduced contact with obstacles. The ICON Tubular Rear Track Bar helps to free up bind during rear suspension travel and articulation by perfectly centering the axle. It features on-vehicle adjustability for precise track alignment.
Piston Assembly
At the core of every shock lies its main piston valving. Ride Shocks has introduced a groundbreaking (patent pending) piston design that efficiently directs a significant volume of oil through a network of ports, leading to either the compression or rebound side shim stack. This stack, comprised of progressively smaller shims, offers a unique capability to finely control the shock's up and down movement. With the flexibility to adjust the number of shims, we can achieve a meticulously balanced ride. At Ride Shocks, we take it a step further by customizing the valving of each shock to harmonize with the specific vehicle weight, ensuring an optimal blend of bump handling and a plush ride experience.
DPA Adjusters
DPA stands for Dual Piston Adjuster. With the turn of a knob, you can independently adjust your shocks HIGH and LOW speed compression levels. From the factory, your adjusters will both be fully decreased (open). Increasing (closing) the LOW speed will allow you to stiffen the ride of your suspension and make it less active during low speed (shaft speed/not vehicle speed) movements. This comes in handy when the suspension feels too bouncy over gradual rolling bumps. Increasing the HIGH speed will allow you to dial in your ride when shooting through rough washboard terrain and can also come in handy when adding weight to your vehicle.
Specifications
Specifications
- Product Front Coilovers: 525414389
- Product Front Weight Range: 2350-2950 LB
- Product Front Springs: 16" x 3.0" x 550 lb/in
- Front Compressed Length: 18.71"
- Front Extended Length: 24.3"
- Front Travel: 5.59"
- Product Front Upper Control Arms: AOR-2000-0033
- Product Rear Shocks: 525414589
- Product Rear Weight Range: 2100-2600 LB
- Product Rear Springs: 16" x 3.0" x 650 lb/in
- Rear Compressed Length: 18.31"
- Rear Extended Length: 27.70"
- Rear Travel: 9.39"
- Rear Upper Links: ICON-44100T
- Rear Lower Links: ICON-44000T
- Product Vehicle Fitment: 2021+ Ford Bronco (excludes Raptor Model)
