- Features
Features
Fitment Notes
AccuTune Off-Road Control Arms have been designed to work with standard or extended travel coilovers. Maximum shock extended length is 24.60”, measured from underneath the top OEM frame mount to bottom of lower bar pin shock mount. This includes any spacers. These Upper Control arms are not designed to be used with a Long Travel Kit, Drop Bracket Lift or spindle lift. Warranty void with aftermarket lower control arms. Many aftermarket lower control arms move the shock mount to wheel distance, which results in increased droop and may exceed the travel limitations of the ball joint.

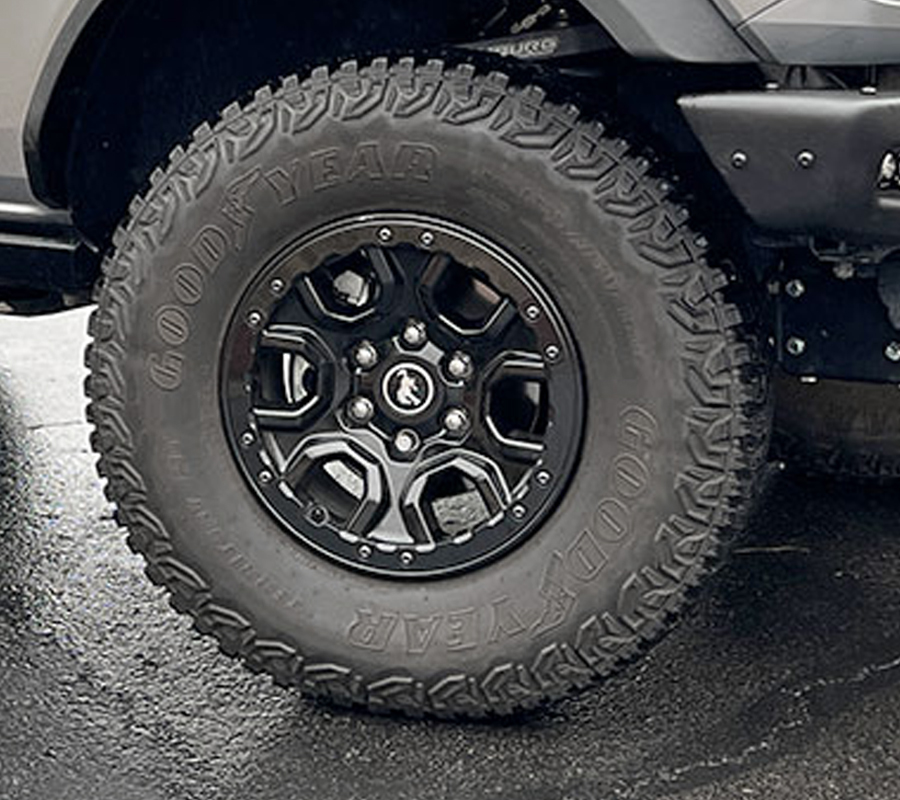

Tire & Wheel Fitment
Due to the variety of manufacturers and options we cannot guarantee every tire and wheel fitment. We have been able to clear 37x12.50R/17 tires by removing the crash bars on the front of the chassis. The bumper and other related parts may need to be trimmed for tire clearance as well. Wheel offset recommendations: 17x8.5“ wheel, with -8mm offset.
AccuTune Offroad Quality

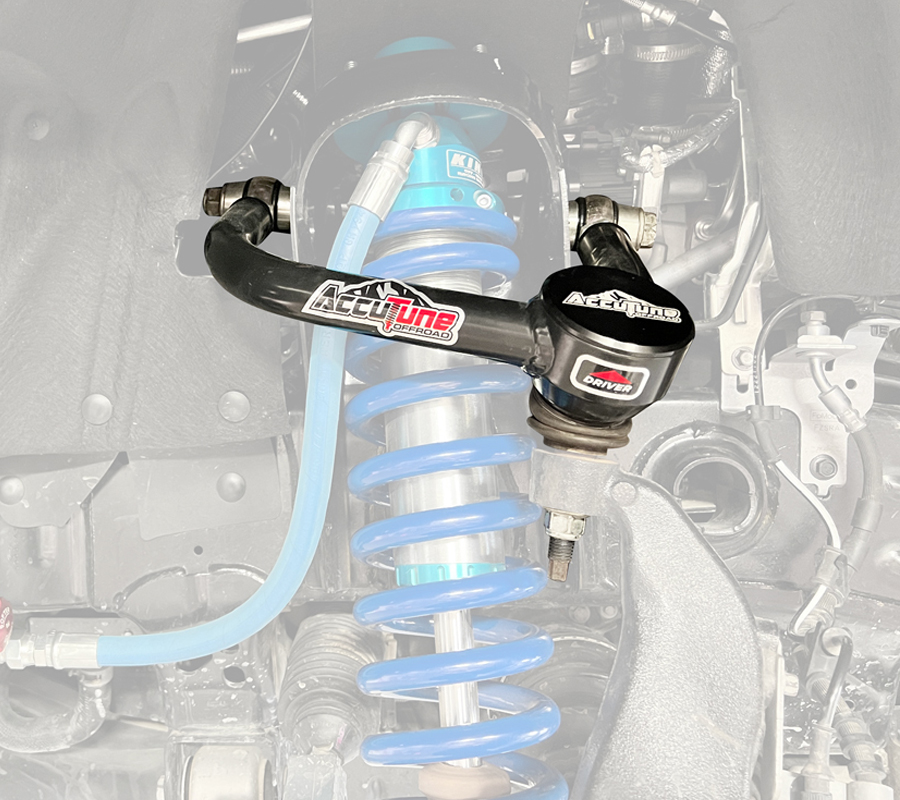

AccuTune Offroad strives to provide high quality products that look great and perform even better. These upper control arms for 21+ Ford Broncos are made from DOM tubing with high quality powder coat finish.
Sealed Heim Joints
These high quality, American made rod ends are sourced from FK Rod Ends. These joints will withstand extreme off-road use over long periods of time. To help avoid premature wear, we've included seals that help keep debris out. These seals will help the joint last for a long time without squeaking. Heim joints at the frame pivot provides firm steering both on and off-road for controlled performance.
Ball Joint with Billet Cap
A high quality all steel ball joint is used for simplicity and durability. These ball joints will hold up great under hard off-road use and have proven to withstand harsh muddy environments. Ball joints come greased ready to run out of the box. The aluminum ball joint cap is removable to access Zerk fitting for greasing.
