You are here: / / / / / 21+ Bronco Mid Travel Suspension Kit, Stage 3A – Fox
Fox 2.5 coilovers with DSC adjusters custom tuned from AccuTune Offroad. This complete Bronco suspension system is outfitted with AccuTune Offroad upper control arms that are designed to fit large off-road tires and proper alignment for lifted applications. Rear control arms and track bar are included from Icon.
AccuTune Offroad Upper Control Arm for 2021 or newer Ford Bronco is packed with features to help support Broncos that have a suspension lift, want bigger tires and maintain proper alignment. These powder coated arms are built tough and designed to last through harsh off-road environments.

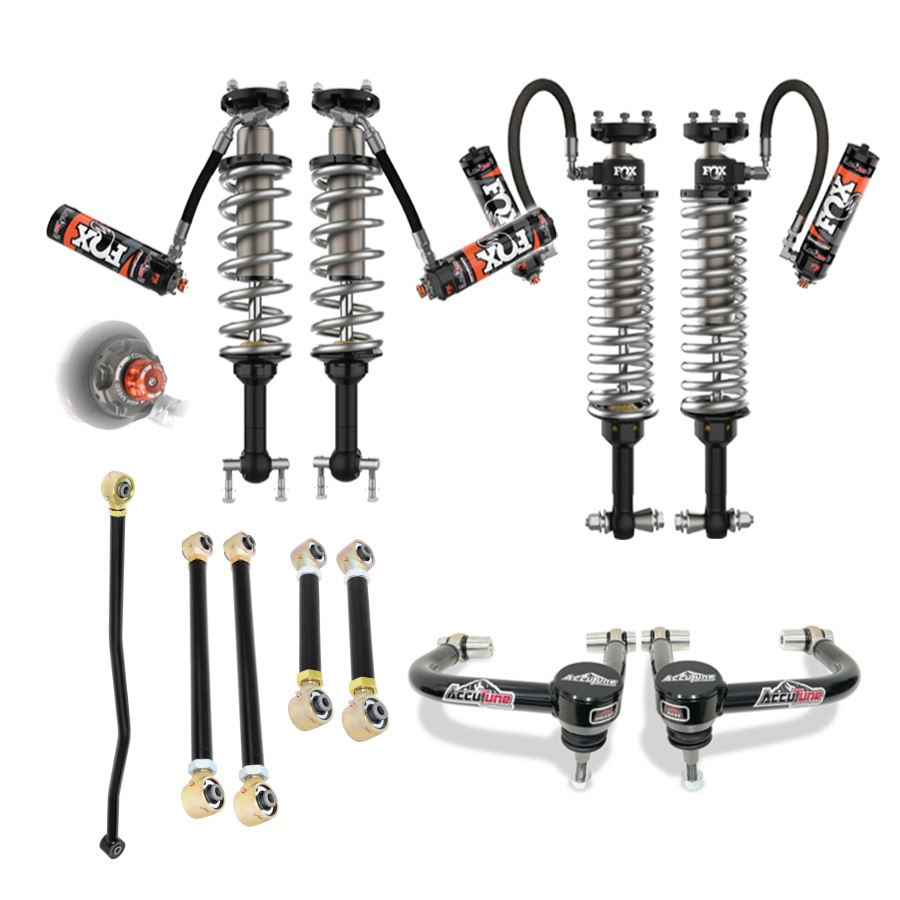

21+ Bronco Mid Travel Suspension Kit, Stage 3A – Fox

SKU: N/A
Free Shipping On Orders Over $150

Fox 2.5 Performance Elite Series Shocks shocks with DSC adjusters will take your Ford Bronco’s off-road performance to the next level. Front and rear shocks will be tuned for your Bronco’s weight and your driving style. This kit includes the AccuTune Offroad Upper Control Arms | ICON rear tubular lower control arms | ICON rear tubular upper control arms. | ICON Rear Adjustable Track Bar. Be sure to get the AccuTune Upgrade package to send the performance to the next level.

AccuTune Custom Upgrade Package: This option includes Fox Race Pistons|Eibach rear springs| and AccuTune Bump Stops. Proper spring rates will help maintain lift height while AccuTune Offroad custom valving with Fox 9-Hole Race Piston really makes a big improvement on ride quality. This is a must have if you want the best ride quality on your 21+ Ford Bronco.

This package helps free up rear axle movement and allow for increased suspension travel and articulation. It is adjustable for various lift heights & driveline angles. Helps improve link angles to free up rear suspension bind. Added rear track bar helps maintain a centered rear axle throughout the travel. CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish. No grease required for life of link bushings.

Front and Rear Shock Install Guide

-

Shock Tuning

Shock Tuning

California Prop 65 Warning
Visit www.p65warnings.ca.gov for more details
  • Features
  • Specifications

Features

AccuTune Off-Road Premium Support

At AccuTune Off-Road we are shock specialists with real world experience to help you select the right shocks for your ride. After the sale we offer tuning support and one free re-valve so you can get the most out of your shocks. Take your ride to the next level with Fox shocks from AccuTune Off-Road.

AccuTune Custom Upgrade

AccuTune Offroad takes ride quality and performance seriously. After weeks of testing and tuning these shocks, we confirmed a high flow race piston would be needed for the performance our customers expect. This upgrade option will also include more compliant AccuTune bump stops to eliminate those cringe worthy bottom out situations. A heavier rate rear spring was also needed to achieve a desired ride height and keep the vehicle driving nicely. This package is the real deal and will truly unleash the performance these shocks were meant to offer.

AccuTune Offroad Upper Control Arm (UCA)

AccuTune Offroad Upper Control arms for 2021+ Ford Bronco are designed to fit larger tires and longer shocks, while maintaining proper alignment. Tubular steel design looks great with high quality powder coat finish. FK Rod ends are sealed to keep dirt and debris from premature wear and noise. Heim joints come pre-set and ready to install. AccuTune Offroad upper control arm, made in the USA.

ICON Rear Upper & Lower Control Arms + Track Bar

The ICON Tubular Rear Upper & Lower Link System helps free up rear axle movement to allow for increased suspension travel and articulation. Adjustable for various lift heights & driveline angles. Improves link angles to help free rear suspension bind, and has high clearance link design for reduced contact with obstacles. The ICON Tubular Rear Track Bar helps to free up bind during rear suspension travel and articulation by perfectly centering the axle. It features on-vehicle adjustability for precise track alignment.

Fox Performance Elite Series Shocks

2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time. External reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

Fox 2.5 DSC Dual Speed Compression Adjuster

Fox's DSC (Dual Speed Compression) adjuster adds external adjustment of low speed and high speed compression so you can tackle a huge variety of terrain in total comfort. Low speed compression adjustment is great for tuning road feel, g-outs and bottoming control. High speed compression adjustment is good for control on big hits and whoops. These are a great add on for anyone wanting the ultimate performance, easy tunability, or significantly changes the weight of their vehicle. Get the most out your Fox 2.5" shocks with a DSC Adjuster.

Fox 2.5 Remote Reservoir Size Advantage For Real Performance

Fox 2.5 shocks take performance to the next level. 2.5" shocks are better able to handle the large motion ratios, heavy weight, and serious off-roading by having more dampening capability and a larger oil volume to disipate the heat. In addition to being a large diameter, these shocks feature an external reservoir which contains more oil and nitrogen for superior off-road performance and durability.

Specifications

Specifications

  • Product Front Coilovers: FOX-883-06-212
  • Product Front Upper Control Arms: AOR-2000-0033
  • Product Rear Shocks: FOX-883-06-213
  • Rear Upper Links: ICON-44100T
  • Rear Lower Links: ICON-44000T
  • Rear Track Bar: ICON-44200T
  • Product Piston: FOX-222-01-291-1
  • Product Rear Springs: 2 DOOR: ERS-PR1300.500.0225
  • Product Rear Springs: 4 DOOR: ERS-1400.375.0250S
  • Bump Stops: 3004-002
