In this tech article, we’re breaking down the key differences between sprung and unsprung weight—and why it matters for your suspension setup. Understanding sprung weight is crucial for choosing the right spring rates, which means better performance, smoother rides, and a dialed-in suspension. At AccuTune Offroad, we live and breathe suspension tuning, and we’re here to help you get it right. By the end of this read, you’ll know exactly what info we need to get your ride performing at its best. Let’s get into it!

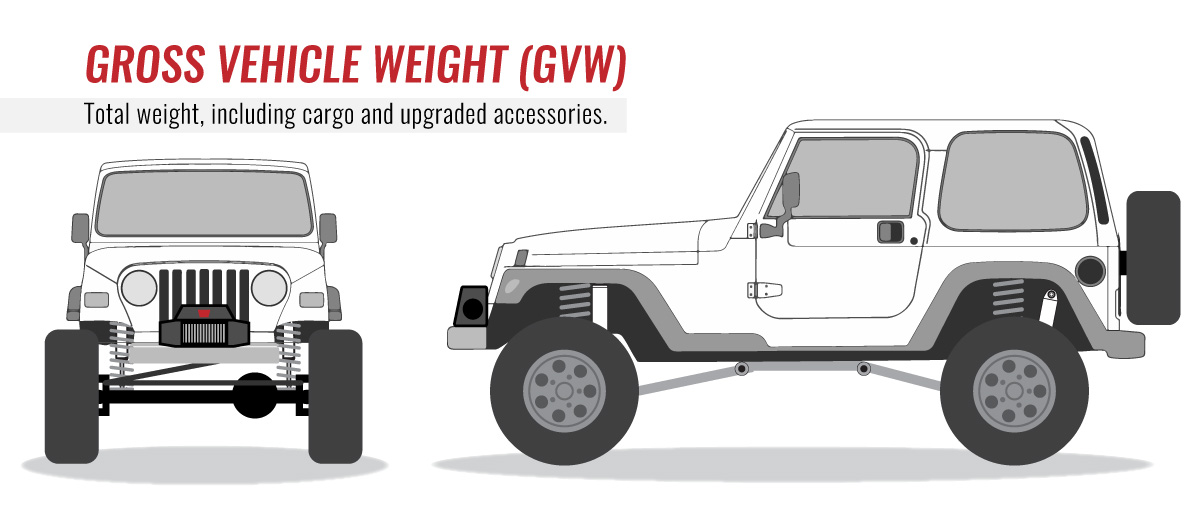

Gross Vehicle Weight Rating (GVWR)
Gross Vehicle Weight Rating (GVWR) is the maximum total weight a vehicle can safely handle when fully loaded—including the vehicle itself, passengers, cargo, and any accessories—as specified by the manufacturer. It’s a critical safety guideline designed to prevent overloading and protect your vehicle from unnecessary wear or failure. Exceeding GVWR isn’t just bad for your suspension, tires, and brakes—it’s dangerous and illegal. Overloading can lead to serious mechanical failures, increased chances of accidents, and severe consequences ranging from fines and license suspension to potential criminal charges if an accident occurs. Stay safe—know your limits.

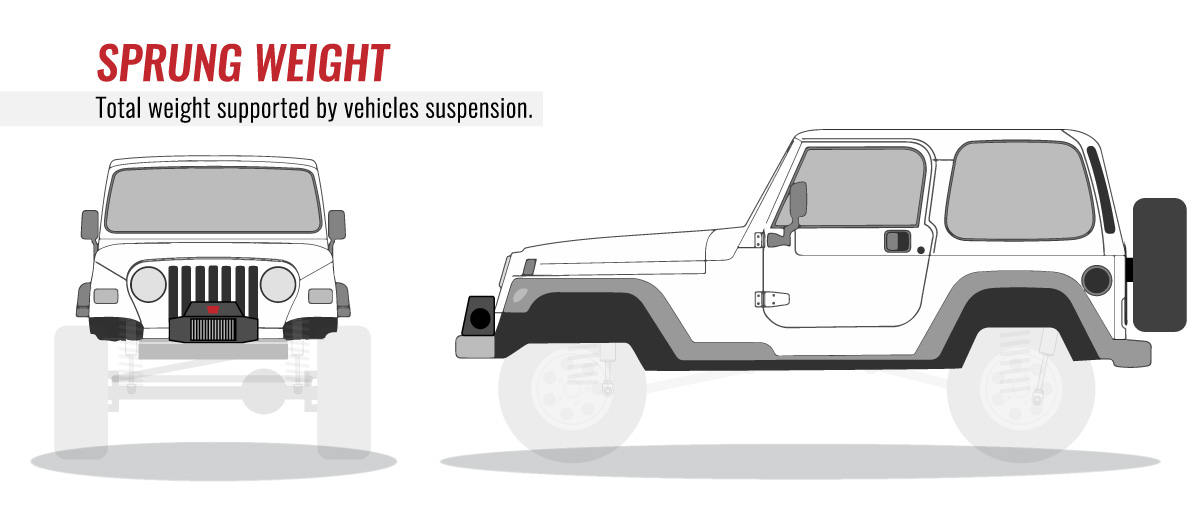

Sprung Weight
Sprung weight refers to all the parts of your vehicle that are supported by the suspension system—this includes the chassis, body, engine, drivetrain, passengers, cargo, and anything else mounted to the frame or truck bed.
Knowing your vehicle’s sprung weight is key when selecting new suspension components. It helps ensure you get the correct spring rates and the most precise tune for your setup. Taking it a step further, knowing your front-to-rear weight bias allows for an even more refined suspension tune—giving you the best ride quality and performance possible.
Remember: if it’s supported by the suspension, it counts toward your sprung weight. Lighter vehicles or setups with low sprung weight can be trickier to dial in and may require tender coils to get everything just right.
Sprung Weight Examples:
Skid Plates & Rock Sliders
Upgrading to heavy-duty skid plates and rock sliders is a smart move for off-road protection—but it comes at a weight cost. These are some of the heaviest accessories you can add to your vehicle, especially engine and transmission skid plates, which often go unnoticed since they’re tucked underneath. While they’re essential for protecting vital components on the trail, they significantly increase your vehicle’s sprung weight and should absolutely be factored in when calculating suspension setup.

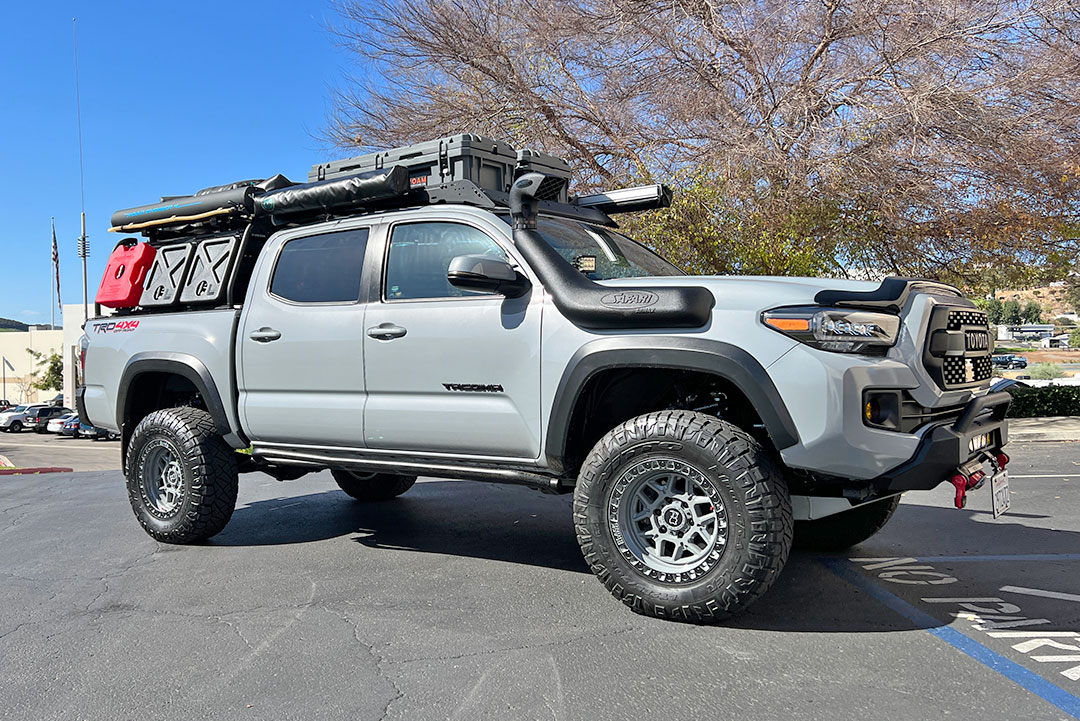

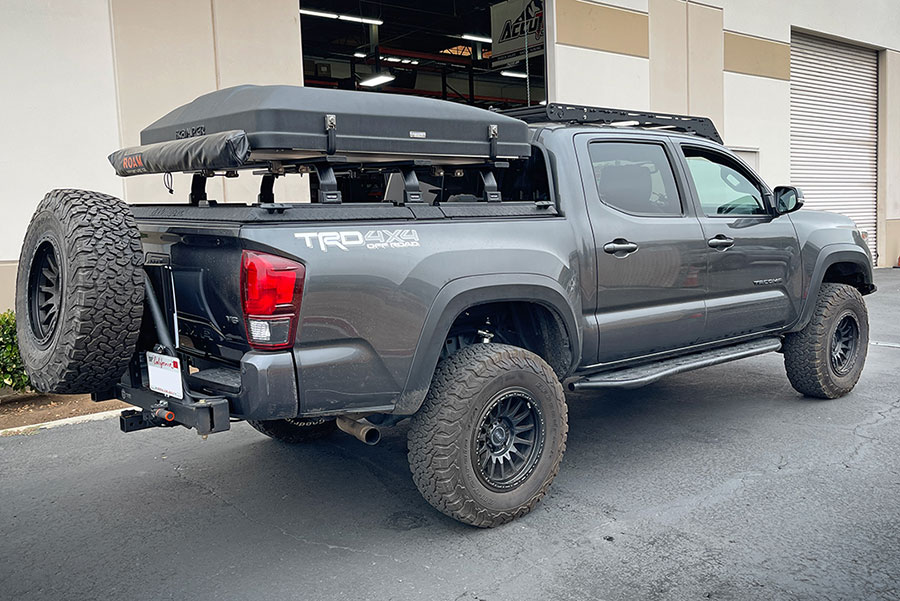

Roof Rack & Roof Top Tents
Since skid plates and rock sliders are mounted directly to the chassis, they count toward the vehicle’s sprung weight. Because they often span multiple sections of the vehicle—especially full-length skid systems—their weight typically affects both the front and rear suspension. When calculating your total sprung weight, it’s important to split their weight proportionally between the front and rear to get the most accurate numbers for tuning your suspension.

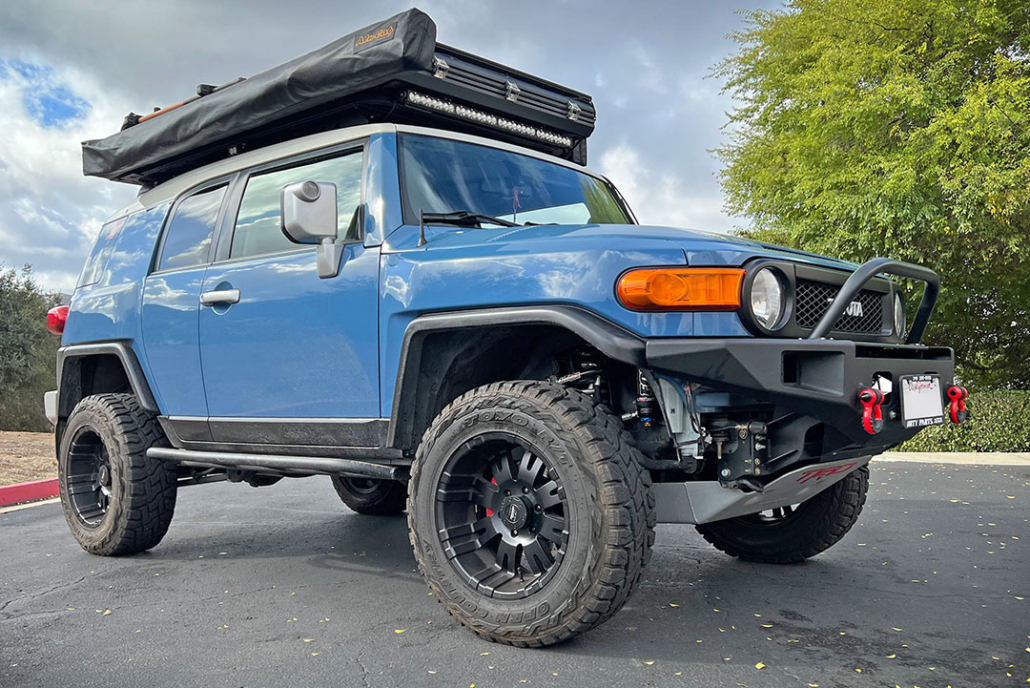

Winches & Bumpers
Upgrading your factory bumpers can have a significant impact on your vehicle’s sprung weight and front-to-rear weight distribution. Steel bumpers are a popular choice for off-road builds, but they’re considerably heavier than aluminum options. Most aftermarket bumpers replace the factory units, so for the most accurate weight calculation, be sure to account for the difference between the new and original bumpers—not just the new bumper’s weight alone. Also, don’t forget winches—these are common additions to aftermarket bumpers and usually add another 50 to 90 pounds to the front of the vehicle.
Sprung Weight Wrap Up
Too much sprung weight at either the front or rear of your vehicle can throw off handling both on and off-road. As you start adding heavy accessories, it’s easy to creep past your vehicle’s maximum safe weight limit without realizing it. Extra weight means more stress on key systems—especially your brakes. If your build is getting heavy, it might be time to consider a brake upgrade to maintain safe stopping performance.
On the flip side, having too little sprung weight can also cause issues. Lighter setups can make it challenging to dial in the right spring rates and valving, which may impact ride quality and performance.
As your vehicle’s sprung weight increases, your suspension setup needs to keep up—meaning stiffer spring rates and updated shock valving. That’s where AccuTune Offroad comes in. With detailed calculation data and tuning experience, we can make accurate predictions and deliver a suspension setup that’s dialed specifically for your build—just give us your weight figures, and we’ll handle the rest.

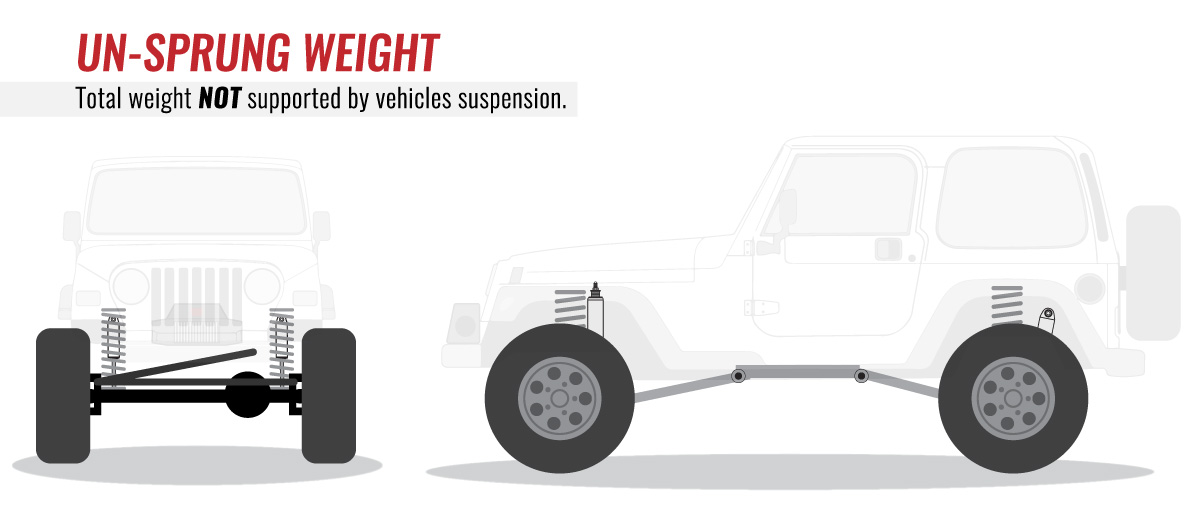

Un-Sprung Weight
Unsprung weight refers to all the parts of a vehicle that are not supported by the suspension—things like wheels, tires, axles, portals and other components that move with the terrain. This part of the system is constantly in motion over bumps, ruts, and obstacles, and it plays a big role in how your vehicle feels on the trail or road. In some cases, a bit more unsprung weight can even help ride quality, especially in low-speed rock crawling. But for high-speed off-road or street use, less is usually better.
Unlike sprung weight, unsprung weight doesn’t have a major impact on spring rate selection. At AccuTune Offroad, we consider both sprung and unsprung weight when dialing in your shock valving—but you don’t need to stress over exact numbers. A rough estimate within +/- 50 lbs is good enough for us to nail your tune.
The springs are designed to control the movement between the axle and the chassis. Ideally, the axle moves while the chassis stays stable. Think of it in terms of physics: Acceleration = Force ÷ Mass. A lighter axle (lower unsprung weight) will react faster and more independently of the chassis, giving you better ride control. But when the axle starts getting close in weight to the chassis, it becomes harder to move it without transferring motion to the vehicle body—resulting in a harsher ride.
Increased unsprung weight does have benefits in rock crawling, helping with articulation and lowering the center of gravity. However, for desert running or daily driving, reduced unsprung weight will help maintain better axle-to-chassis dynamics, translating to improved ride quality and control.
Unsprung Weight Examples:

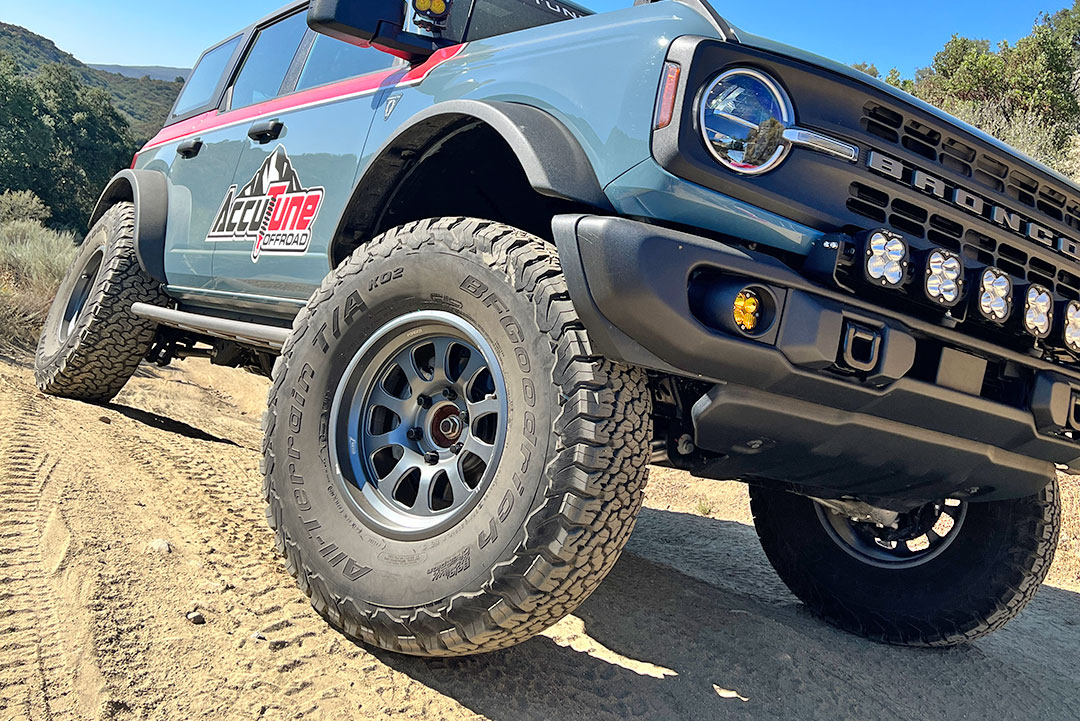

2022 Ford Bronco with 37″ BFG All-Terrain Tires (65 LB/each) with 17″ Titan7 t-ak1 forged wheels (20.6 LB/each)
Aftermarket Wheels & Tires
Upgrading your factory wheels and tires doesn’t just change the look of your vehicle—it directly impacts the mass dynamics of your suspension. Since wheels and tires are part of the unsprung weight, swapping them out affects how easily the axle can move in relation to the chassis.
The springs function to control movement between the axle and the chassis. Ideally, when the suspension reacts to bumps or terrain changes, the axle moves while the chassis stays level and stable. This concept is backed by physics:
Acceleration = Force ÷ Mass
A lighter axle (and therefore less unsprung weight) responds faster to the same force, which helps maintain better ride quality and vehicle control. But when you increase the weight of the wheels and tires—especially with heavy off-road setups—you also increase the mass of the axle assembly. As that mass approaches the weight of the chassis, it becomes harder for the suspension to isolate movement, meaning bumps and vibrations are more likely to transfer into the cabin.
So while bigger wheels and tires can offer performance and durability gains, it’s important to consider their effect on suspension performance. Keeping unsprung weight in check helps your shocks and springs do their job—and keeps your ride smooth and controlled.
Unsprung Weight Wrap Up
Excessive unsprung weight, whether at the front or rear, can negatively affect your vehicle’s ride quality and off-road performance. As you add more accessories, it’s easy to exceed your vehicle’s GVWR, which can strain other systems like your brakes. More weight may require brake upgrades to ensure safe stopping power. Generally, lower unsprung weight is better for maintaining ride comfort and off-road capability. As unsprung weight increases, the ideal spring rate and valving will need to be adjusted. At AccuTune Offroad, we use detailed calculation data to help determine the best tune based on the information you provide, ensuring optimal performance for your setup.
Measuring Sprung and Unsprung Weight

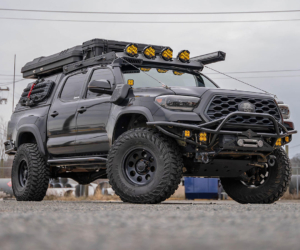

For the most accurate weight measurements of your vehicle, head to a nearby truck cat scale to weigh the entire vehicle. Once you have that figure, you can calculate the added weight from your accessories and compare it to the stock weights for your specific model.
In many cases, simply providing us with the total weight is sufficient. We can use that data to determine the correct springs and tune for your setup.
If you’re building a buggy or rock crawler, however, getting corner weights is the best approach. This allows us to more precisely tailor the suspension to your needs and ensure you get the best possible ride quality.
Final Thoughts
We hope this article has helped clarify the importance of considering every aspect of your vehicle’s weight—from sprung weight and front/rear weight bias to how unsprung weight affects overall handling.
At AccuTune Offroad, we’re here to guide you through these calculations and help you make more informed decisions when upgrading your suspension. Trust us to fine-tune your setup so your vehicle’s suspension is performing at its absolute best, no matter where the road takes you!
